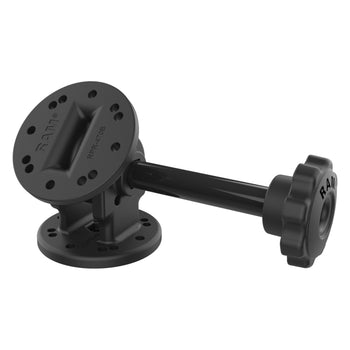

RAM® Single Pivot Mount with Knob
Part#:RAP-101-PV4U UPC:793442025426
539 kr
  • Low-profile, drill-down mounting solution for heavy-duty environments

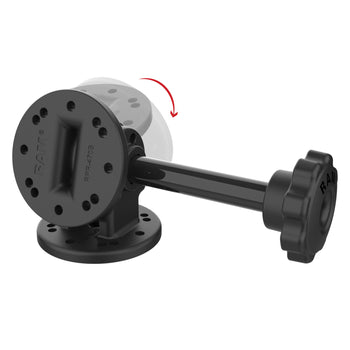

  • Single articulation joint pivots up to 180-degrees extended knob for easy adjustments
  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM® Single Pivot Mount with Knob (RAP-101-PV4U) is a low-profile, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees, and the extended knob makes it easy to adjust the viewing angle of your device.

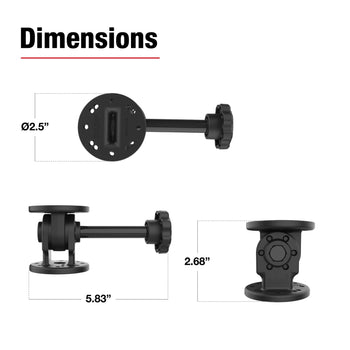

product dimensions

Overall Height: 2.68"
Overall Width with Knob: 5.83"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size

2.5" Diameter
materials

High strength composite
packaging type

Poly Bag
Weight

0.0 kg
