UNPK RAM HUMMINBIRD PIRANHA MNT W/ TRACK
Part#:RAP-B-107-1B-354-TRA1U UPC:793442955068
Ball Icon B SIZE
Arm Icon MED ARM
789 kr

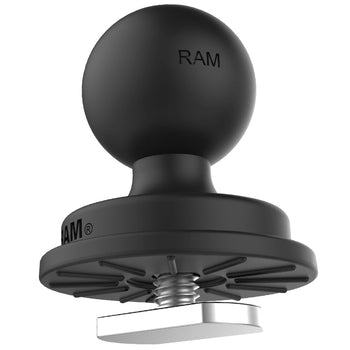

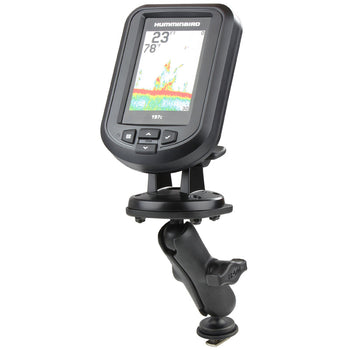

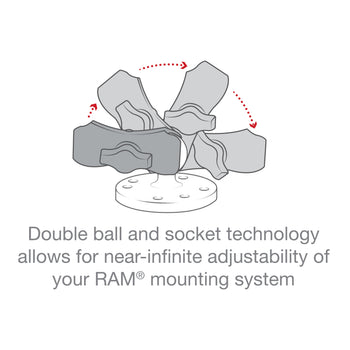

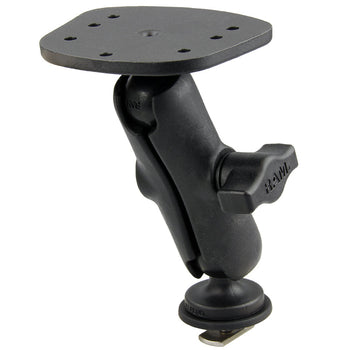

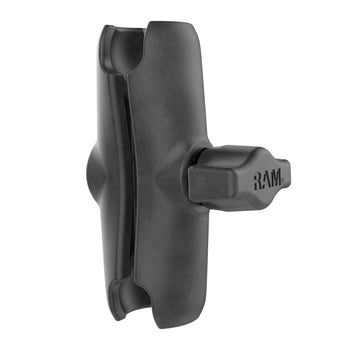

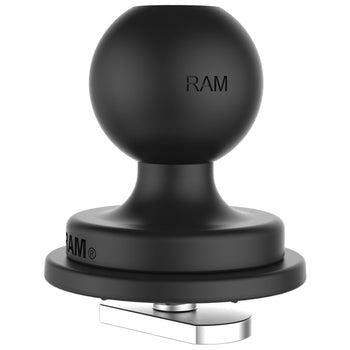

The RAP-B-107-1B-354-TRA1U consists of a Track Ball™ base, composite double socket arm and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm - allowing for high adjustability to achieve perfect viewing angles. This kit is compatible with virtually any track system including the RAM Tough-Track™.

The RAP-B-107-1B-354-TRA1U consists of a Track Ball™ base, composite double socket arm and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a RAM 1" diameter rubber ball and socket system that has adjustment points at both ends of the double socket arm - allowing for high adjustability to achieve perfect viewing angles. This kit is compatible with virtually any track system including the RAM Tough-Track™.
hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

socket to socket length

3"

hole pattern

See Drawing

plate size

3.97" x 4.85"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.227 kg

Cuda 240i

Cuda 240

Cude 168

Cuda 128

FishEasy 320C

FishEasy 240

Piranha MAX 20

Piranha MAX 15

Piranha MAX 10

X-4

X-4 Pro
