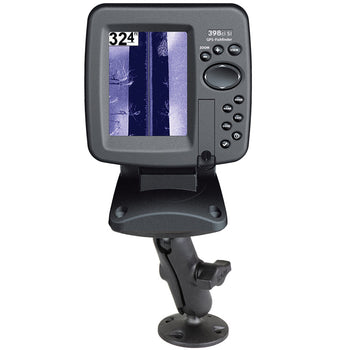

RAM® Composite Fishfinder Mount for Humminbird Devices
Part#:RAP-B-107U UPC:793442940323
Ball Icon B SIZE
Arm Icon MED ARM
819 kr
The RAP-B-107U consists of a composite 2.5" diameter round base with the universal AMPs hole pattern, composite double socket arm and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm thus allowing for almost infinite adjustment and perfect viewing angles.
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
See Drawing
plate size

Fishfinder Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.286 kg

Consists of

RAM® Composite Round Plate with Ball - B Size RAP-B-202U
Ball Icon B SIZE
Arm Icon ARM
179 kr
RAM® Composite Double Socket Arm - B Size Medium RAP-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
259 kr
RAM® Ball Adapter for Humminbird Devices RAM-B-107BU
Ball Icon B SIZE
Arm Icon ARM
479 kr

700 Series

600 Series

500 Series

300 Series

100 Series

Matrix Series (excluding Matrix 97)

Elite-5

Elite-5M

Elite-5X

Apelco Fishfinder with matching hole pattern
