RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount
RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount
B SIZE
MED ARM
1 219 kr

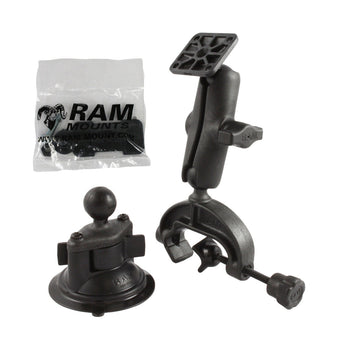

The RAP-B-121-224-1U consists of a yoke clamp base, 3.3" diameter suction cup base, standard length double socket arm and 2" x 1.7" square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.
| hardware included |
Assembly Hardware |
| clamp range |
.625" - 1.25" |
| suction size |
3.3" Diameter |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
High strength composite |
| packaging type |
Poly Bag |
| Weight |
0.363 kg |
