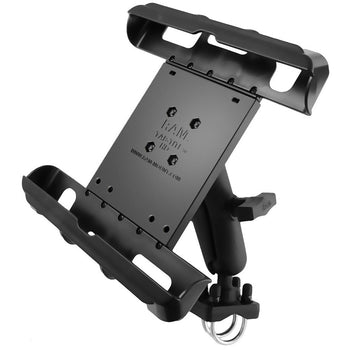

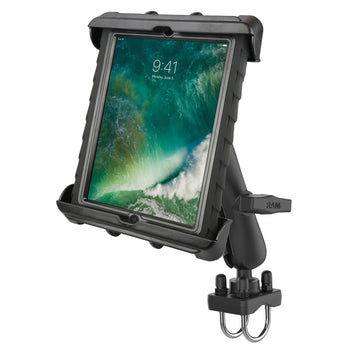

RAM® Tab-Tite™ Large Tablet Holder with Double U-Bolt Mount
Part#:RAM-138-235-TAB17U UPC:793442943201 Patented
Ball Icon C SIZE
Arm Icon MED ARM
2 049 kr
The RAM-138-235-TAB17U consists of a double u-bolt base with 1.5" dia. ball, double socket arm and Tab-Tite™ universal clamping cradle. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
holder dimensions

Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"
clamp range

1" - 1.25" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.717 kg

Consists of

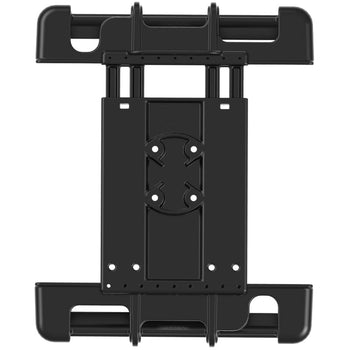

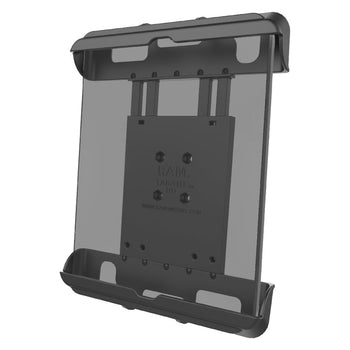

RAM® Tab-Tite™ Tablet Holder for Apple iPad Gen 1-4 with Case + More RAM-HOL-TAB17U
699 kr

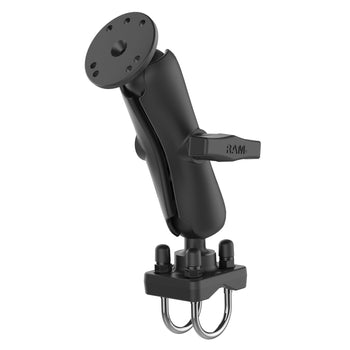

RAM® Double U-Bolt Rail Mount for Smaller Rails - C Size Medium RAM-101U-235
Ball Icon C SIZE
Arm Icon MED ARM
1 389 kr

iPad (1st Generation) with Case

iPad 2 with Case

iPad (3rd Generation) with Case

iPad (4th Generation) with Case

iPad Air 4 with Case

iPad Air 5 with Case

iPad Pro 11" with Case

iPad Pro 11" (2020) with Case

Latitude Latitude 7230

Venue 10 7000 with Case

Nexus 10 with Case

ElitePad 900 G1 with Case

Pro 610 with Case

Pro Slate 10.1 with Case

S6000 with Case

Yoga Tablet 2 (10 inch) with Case
