RAM® Tough-Claw Small Clamp Mount with Round Plate Adapter - Short
Part#:RAM-202-B-400U UPC:793442949593 Patent Pending
Ball Icon C SIZE
Arm Icon SHORT ARM
1 499 kr

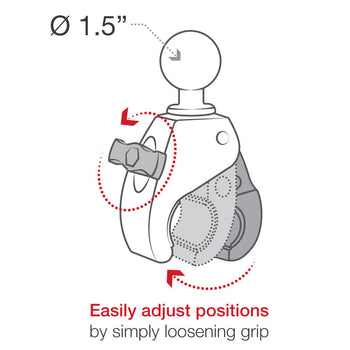

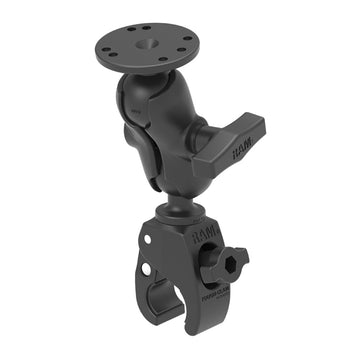

The RAM-202-B-400U consists of the small Tough-Claw base, short double socket arm and round base adapter. The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
clamp range

.625" - 1.14" diameter

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.494 kg

Consists of
