RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - B Size Long
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - B Size Long
B SIZE
LONG ARM
1 029 kr

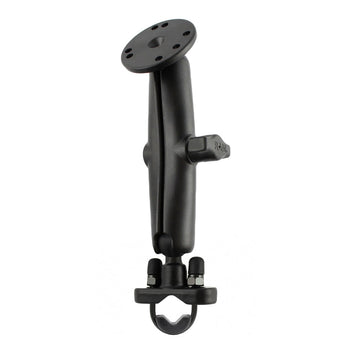

The RAM-B-101-C-231ZU consists of a zinc coated u-bolt base, 6" long double socket arm and 2.5" diameter round base that contains the universal AMPs hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
| hardware included |
(1) 1/4"-20 U-Bolt for .5" - 1" Rails |
| clamp range |
.5" - 1.25" diameter |
| socket to socket length |
5.31" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.454 kg |
Consists of
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size
RAM-B-231ZU
B SIZE
ARM
369 kr
B SIZE
ARM
