RAM YOKE MNT FOR SAMSUNG TAB A 8
Part#:RAM-B-121-TAB29U UPC:793442014314 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 699 kr

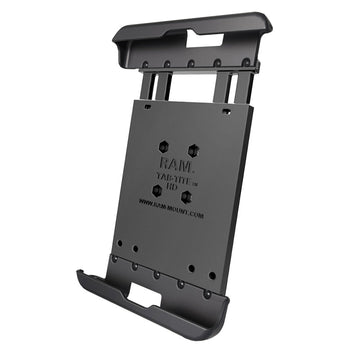

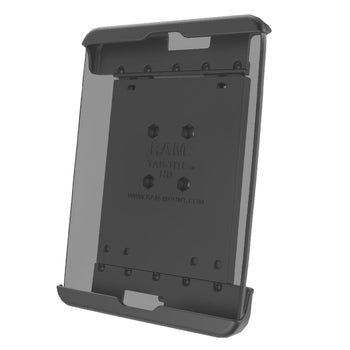

  • Spring-loaded holder secures most 8" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

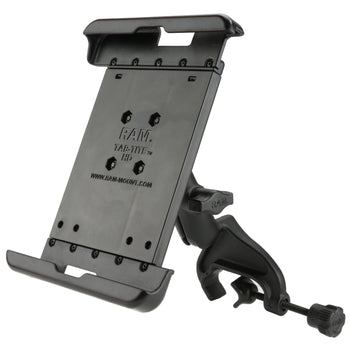

This ideal airplane yoke mount includes a spring-loaded holder that secures most 8" tablets with a case, and consists of a yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. In addition to most 8" tables with a cases, this holder can also accommodate the Samsung Galaxy Tab A 10.1 (2019).

This ideal airplane yoke mount includes a spring-loaded holder that secures most 8" tablets with a case, and consists of a yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. In addition to most 8" tables with a cases, this holder can also accommodate the Samsung Galaxy Tab A 10.1 (2019).
hardware included

Assembly Hardware

holder dimensions

Height Range: 8.25" - 11"
Width Range: 5" - 5.88"
Depth Range: .3" - .67"

clamp range

.625" - 1.25"

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.261 kg

iPad mini 2 with Case

iPad mini 3 with Case

iPad mini 4 with Case

iPad mini 5 with Case

Pro Tablet 408

Galaxy Tab A 8.0 with Case

Galaxy Tab A 10.1 (2019)

Galaxy Tab S2 8.0 with Case
