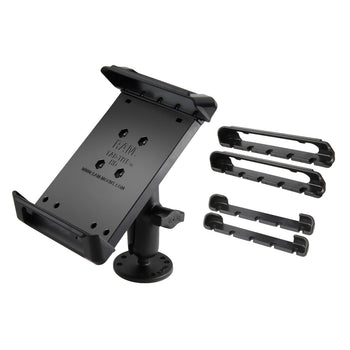

RAM® Tab-Tite™ Drill-Down Mount for Small Tablets
Part#:RAM-B-138-TAB-SM UPC:793442937651 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 509 kr
hardware included

Assembly Hardware
holder dimensions

Height Range: 7" - 10"
Width Range: 4" - 5.31"
Depth Range: .44" - 1.06"
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Retail Bag
Weight

0.544 kg

Consists of

RAM® Tab-Tite™ Universal Spring Loaded Holder for 7" Tablets RAM-HOL-TAB-SMU
799 kr
Sold out
RAM® Universal Double Ball Mount with Two Round Plates - B Size Medium RAM-B-101U
Ball Icon B SIZE
Arm Icon MED ARM
669 kr
