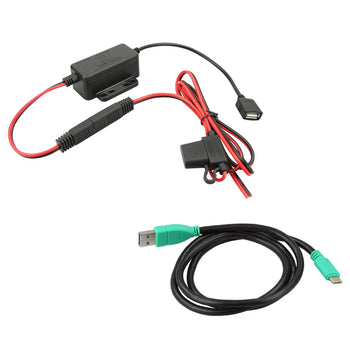

GDS® Modular 30-64V Hardwire Charger with Type-C Cable
Part#:RAM-GDS-CHARGE-USBC-V8BU UPC:793442936289
759 kr
  • Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type-C extension cord. Always Protected. Always Connected.®
hardware included

(1) USB Type-C to Type-A Cable
packaging type

Poly Bag
input voltage

30-64VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.209 kg
Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Consists of

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector RAM-GDS-CHARGE-V8BU
869 kr
GDS® Genuine USB Type-C 3.0 Cable RAM-GDS-CAB-USBC-AMCMU
349 kr
Sold out
