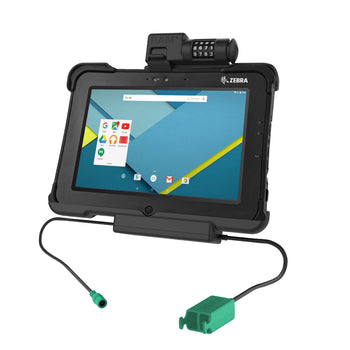

GDS® Combo Locking Power + Dual USB Dock for Zebra XSLATE L10
Part#:RAM-HOL-ZE15PD2CLU UPC:793442015953 Patented & Pats. Pend.
4 549 kr
  • Combination locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra XSLATE L10 via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket tablet scanning works while tablet is docked

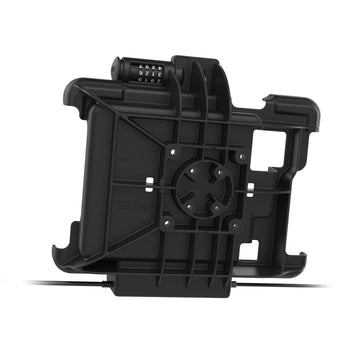

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

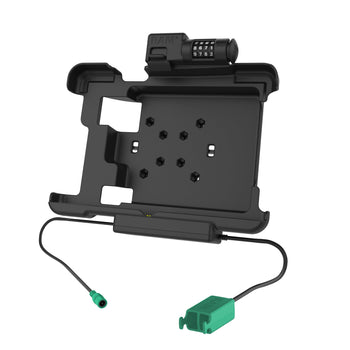

Featuring GDS® Technology™ for data and charging capabilities and a combination lock for theft deterrence, the GDS® Vehicle Dock for the Zebra XSLATE L10 allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, kickstand and extended battery bracket. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
hardware included

(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(6) Small Cable Ties
(2) Large Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

output connector

(2) USB 2.0 Type A

peripheral output

900mAh (per port)

transfer speed

12Mbps

Warranty

3 year warranty

Weight

0.939 kg

XSLATE L10
