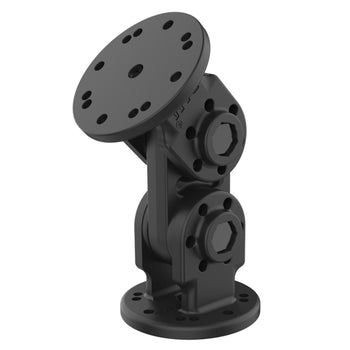

RAM® Dual Straight Pivot Mount
Part#:RAP-101-PV4-2S-NKU UPC:793442025488
749 kr
  • Low-profile, drill-down mounting solution for heavy-duty environments

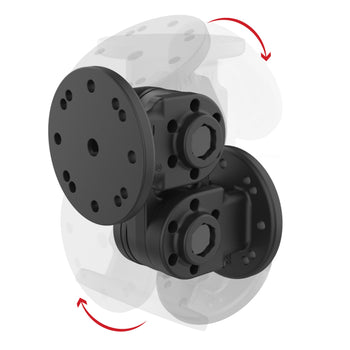

  • Dual articulation joints pivot up to 180-degrees on each joint barrel nut provide tamper resistance

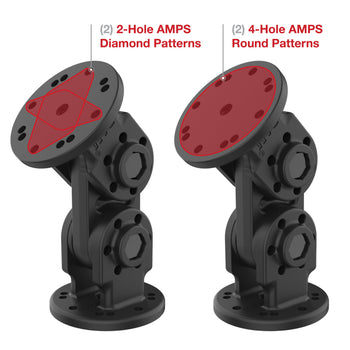

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM® Dual Straight Pivot Mount (RAP-101-PV4-2S-NKU) is a dual articulating, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees on each joint and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.

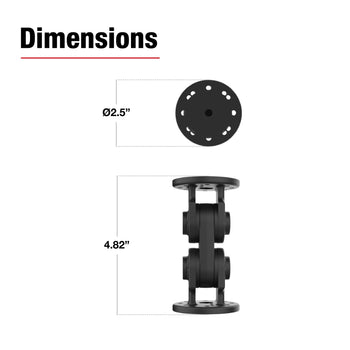

product dimensions

Overall Height: 4.82"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size

2.5" Diameter
materials

High strength composite
packaging type

Poly Bag
Weight

0.0 kg
