RAM® Brake/Clutch Reservoir Mount for Garmin nuvi 2495LMT, 465T + More
Part#:RAM-B-174-GA25U UPC:793442925252 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 109 kr

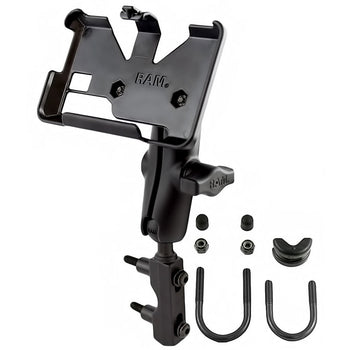

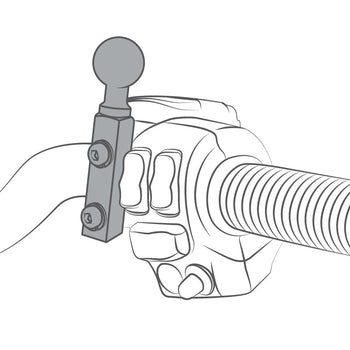

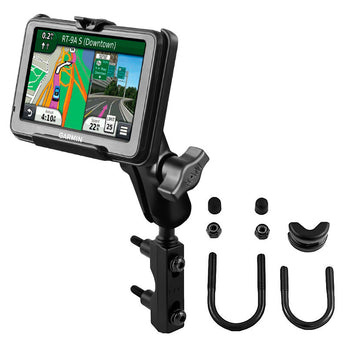

The RAM-B-174-GA25U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter and high strength composite cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm this with a twist of the arm knob, allows you to move the cradle to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.231 kg

Consists of

RAM® Form-Fit Cradle for Garmin nuvi 200W, 285WT & 465T + More RAM-HOL-GA25U
229 kr

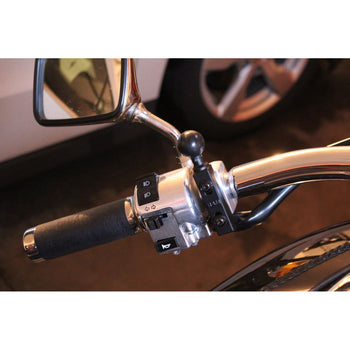

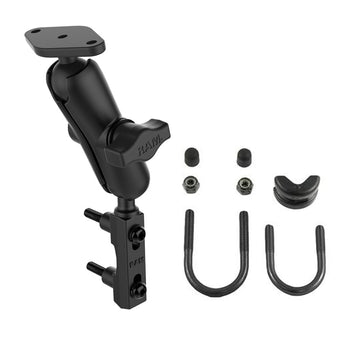

RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium RAM-B-174U
Ball Icon B SIZE
Arm Icon MED ARM
939 kr

nuvi 200W

nuvi 205W

nuvi 250W

nuvi 255W

nuvi 260W

nuvi 265W

nuvi 265WT

nuvi 285WT

nuvi 2455LMT

nuvi 2475LT

nuvi 2495LMT

nuvi 465T
