RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount
Part#:RAM-335-316-HD-18-202U UPC:793442026508
Ball size C
Arm length Medium
6 159 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Eye-level, heavy duty tablet mount for forklifts
  • Secures to overhead guards with two identical stamped steel plates
  • Compatible with RAM® device holders containing the universal AMPS hole pattern
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Back by a lifetime warranty
Related RAM® Products
RAM® Pin-Lock™ Security Kit for RAM® Pod HD™
RAM® Pin-Lock™ Security Kit for RAM® Po...
RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...

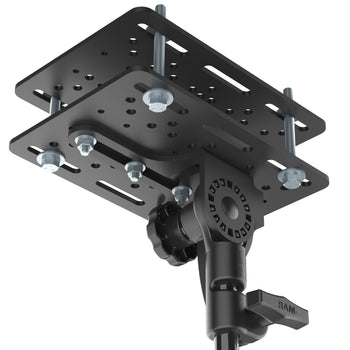

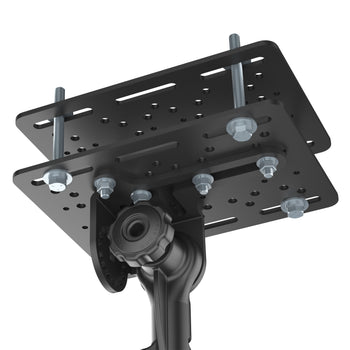

The RAM® Overhead Guard Mount with RAM® Pod HD™ 30" Heavy Duty Tablet Mount (RAM-335-316-HD-18-202U) provides an eye-level tablet mounting solution for forklifts. The overhead guard base consists of two identical plates of stamped steel with numerous common hole patterns and slots (available in the resources tab) making installation a breeze. The RAM® Pod HD™ is 30" and topped with a C size arm and C size round plate with ball. The round plate with ball features the universal AMPS hole pattern to secure your preferred tablet holder or dock.
hardware included

Assembly Hardware
product dimensions

Height Range: 24.75" - 31.75"
Pipe Diameter: .84" OD
socket to socket length

4.66"
hole pattern

See Drawing
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Powder coated steel
Marine-grade aluminum
packaging type

Box
Weight

6.052 kg
Additional information
This mount can support any RAM® or GDS® Tablet Dock or Holder, but is not suitable for any heavy duty vehicle-mounted computer or tablet + keyboard combo.
