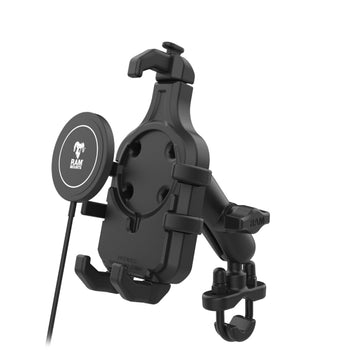

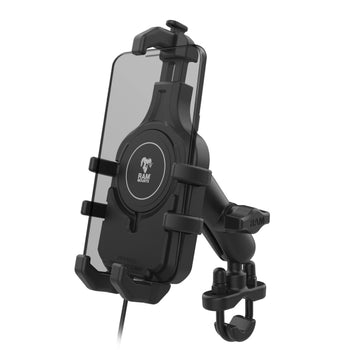

RAM® Quick-Grip™ Pro Phone Handlebar Mount with Qi2 15W Wireless Charger
Part#:RAM-B-149Z-PD5-W2MU UPC:793442034473
Ball Icon B SIZE
Arm Icon SHORT ARM
2 459 kr
Incl. VAT

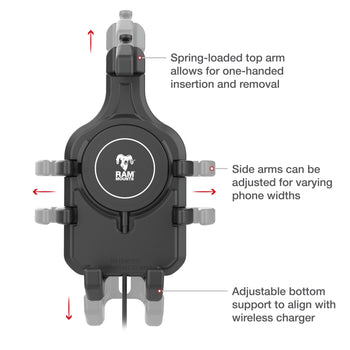

  • Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones easily insert and remove your phone with one hand

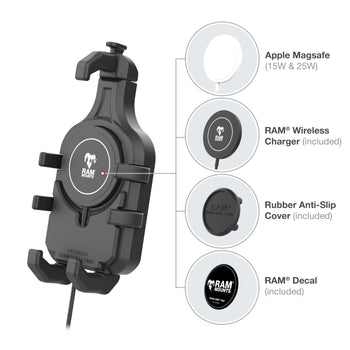

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Made of high-strength composite for durability and reliability Wireless charger features IP67 waterproof rating for withstanding water and dust in the most extreme conditions

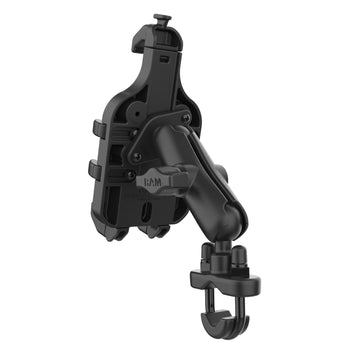

  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length, B size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
  • Mounting components backed by a lifetime warranty electronics backed by a 3-year warranty
The RAM® Quick-Grip™ Pro Phone Handlebar Mount with Qi2 15W Wireless Charger (RAM-B-149Z-PD5-W2MU) is the next evolution of the RAM® Quick-Grip™ series, re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

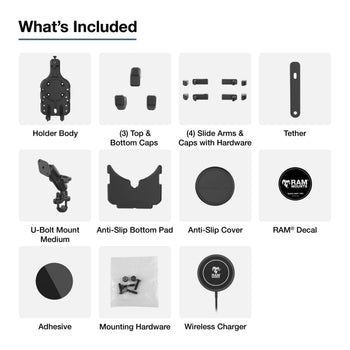

hardware included

Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions

Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
power specifications

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output

BPP - 5W
EPP - 7.5W
MPP - 15W
output connector

USB Type-C Male with USB-A Adapter
output cable length

1 Meter
operating temperature

0°C to +40°C
storage temperature

-20°C to +80°C
regulatory

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight

0.0 kg
Additional Information
The included wireless charger will support up to 8mm charging distance between puck and device.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Top hook may block front facing camera and facial recognition on select phones.
