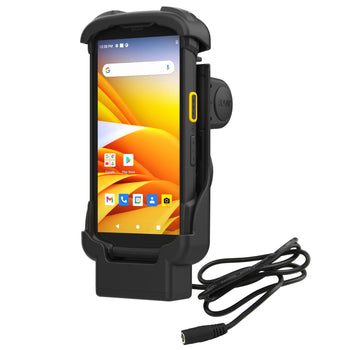

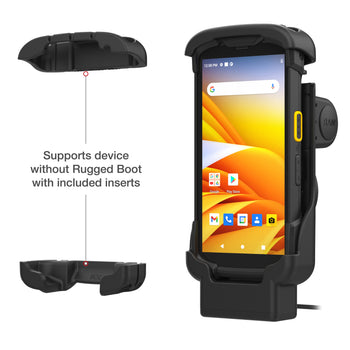

RAM® Form-Fit Powered Dock for Zebra TC73 & TC78
Part#:RAM-HOL-ZE17-1U UPC:793442922244 Patented
2 199 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded form-fit dock perfectly secures the Zebra TC73 and TC78 handheld PC provides power through 1.25-meter long DC connector
  • Compatible with the Zebra hand strap accessory
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
Related RAM® Products

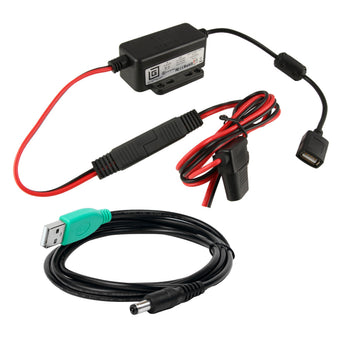

GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable
GDS® Modular 10-30V Hardwire Charger wi...

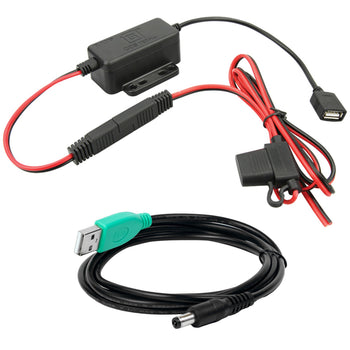

GDS® Modular 30-64V Hardwire Charger with USB-A to DC Cable
GDS® Modular 30-64V Hardwire Charger wi...

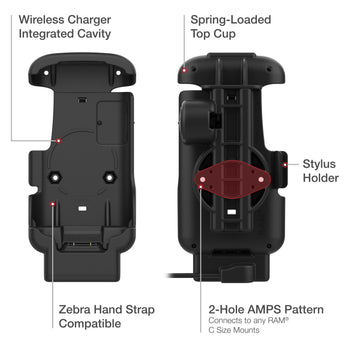

This spring-loaded, form-fit, powered dock (RAM-HOL-ZE17-1U) allows you to secure the Zebra TC73 and the TC78 rugged handheld PC. Power to the device is delivered via a 1.2m long female 5.5mm DC barrel connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included

(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
input cable length

1.25 Meters
Warranty

3 year warranty
Weight

0.304 kg
Additional information
Chargers not included. See "Complete Your Solution" tab to view compatible charging accessories.
