RAM® Locking Form-Fit Holder for Zebra ET8x 2-in-1 Tablet
Part#:RAM-HOL-ZE22LU UPC:793442922749 Patent Pending
3 989 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET8x
Recommended add-on
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET8x
929 kr
Details

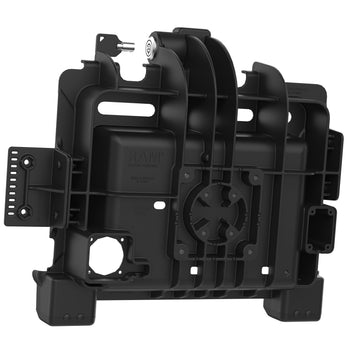

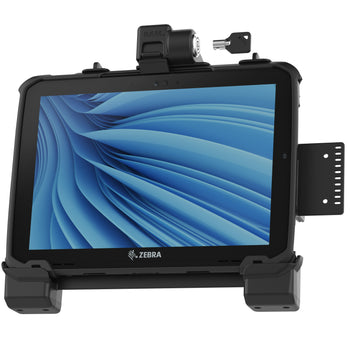

  • Key-locking, spring-loaded form-fit holder perfectly secures the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard
  • Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™

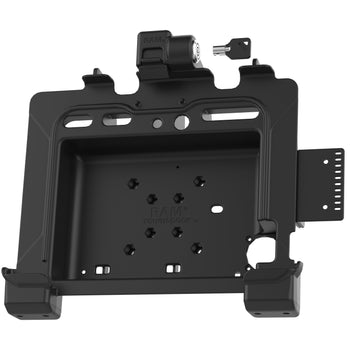

  • Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
  • Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Temp-Right™ Dock Heating Module for Zebra ET8x 2-in-1 Tablet
RAM® Temp-Right™ Dock Heating Module fo...
RAM® Vent-Temp™ with Back Dock Connection for Round Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Back Dock Connecti...

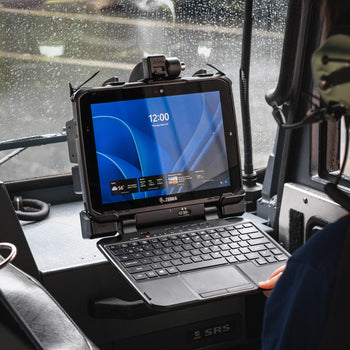

This key-locking RAM® Dock (RAM-HOL-ZE22LU) features a non-powered form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.
hardware included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nyloc Nuts
(8) 4" Zip Tie
(2) 7" Zip Ties
product dimensions

Overall Height: 11.85"
Overall Width: 12.75"
Overall Depth: 4.36"
hole pattern

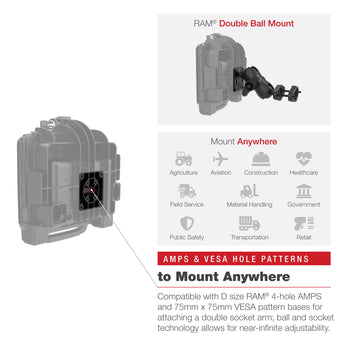

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
Weight

1.098 kg
