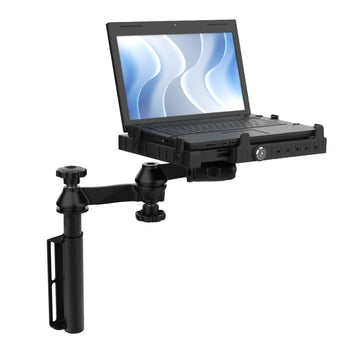

RAM® Vertical Drill-Down Laptop Mount
Part#:RAM-VB-181-SW3 UPC:793442033612
Ball size C
6 289 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Custom laptop vehicle mount installs directly to flat, vertical surface drilling required
  • Dual articulating swing arm provides a high-level of adjustability
  • Universal laptop tray accommodates most laptops
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

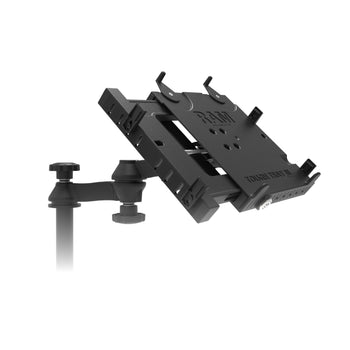

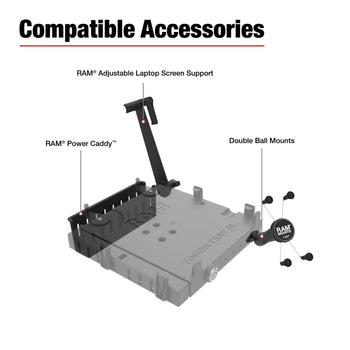

The RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW3) can be installed into any vehicle with a flat, vertical surface or directly to the RAM® Tough-Box™ console. This laptop mounting kits is telescoping, allowing users to adjust the height. Dual swing arms provide articulation and 12” of reach for passenger or driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.

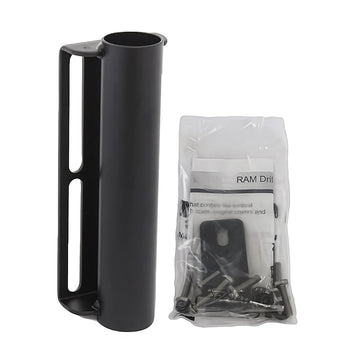

hardware included

Assembly Hardware

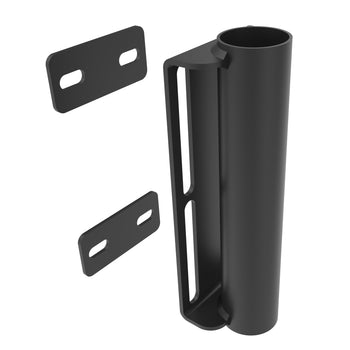

(2) Backing Plates
(4) 1/4"-20 x 1" Hex Bolts
(4) 1/4"-20 Hex Nuts
(8) 1/4" Flat Washers
(4) 1/4" Lock Washers
(2) #10-24 x 3/4" Machine Screws
(2) #10 Fender Washers
(1) 1/4"20 x 3/4" Machine Screw

tray dimensions

Width Range: 10" - 15.25"
Side Arm Clamp Height: 0" - 1.875"
Depth Range: 7.625" - 10.625"
Tray Thickness: 1.26"

hole pattern

See Drawing

ball size

C Size (1.5")

materials

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type

Box
