RAM® U-Bolt Mount for Brother PocketJet Series - Medium
Part#:RAM-VPR-101-1 UPC:793442911149 Patented
Arm Length
Medium Arm Long Arm
Ball size C
2 499 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

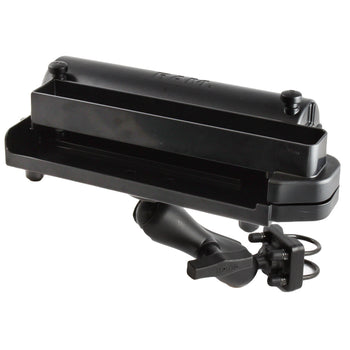

The RAM-VPR-101-1 is designed to hold Brother® PocketJet® Series portable printers, as well as the Printek Interceptor 80 Series. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole™ and other poles with a diameter from 1.25" to 1.88".
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nyloc Nuts
(4) Rubber Caps

clamp range

1.25" - 1.5" diameter

socket to socket length

4.66"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.134 kg
