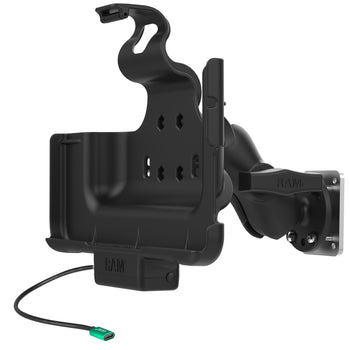

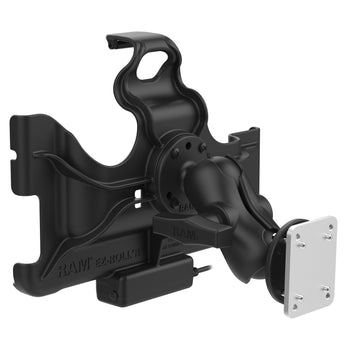

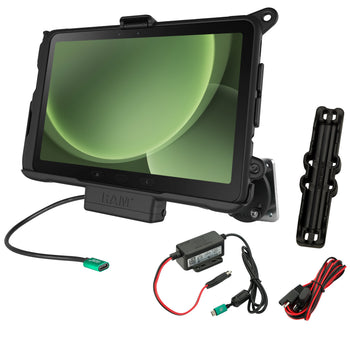

RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro
Part#:RAM-101-225B2-SAM52CP-V7CU UPC:793442025860
Ball Icon C SIZE
Arm Icon MED ARM
4 059 kr
  • Bundle includes the RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and C size double ball mount with medium arm, backing plate adapter, and cable clamp
  • Powered dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in the RAM® Skin™ or Samsung OEM case
  • Next gen charging with integrated pogo pin docking contacts that match the Tab Active4 Pro's pogo pads for a fumble-free charging experience and port-protection
  • Backed by a 3-year warranty
The RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active4 Pro in your fleet. It contains one RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® Powered Dock is backed by a 3-year warranty.

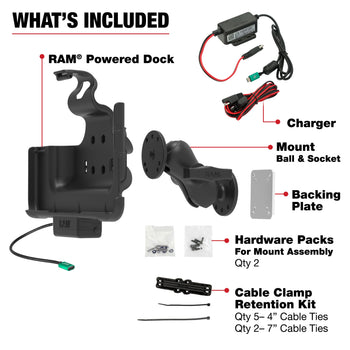

hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Hardwire Charger

socket to socket length

3"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Steel
Marine-grade alluminum
High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Overvoltage/Load Dump Compliance: Meets SAE J-1113
FCC, CE, UKCA, IC

certifications

E-Mark Certification
Integrated Short Circuit Protection
WEEE and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
IEC/UL 62368-1

Weight

0.0 kg

Galaxy Tab Active Pro

Galaxy Tab Active4 Pro
