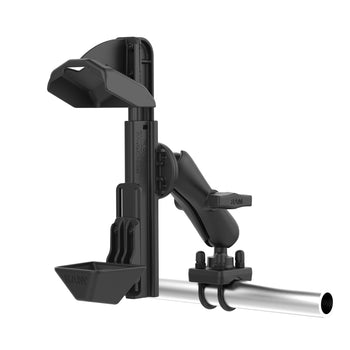

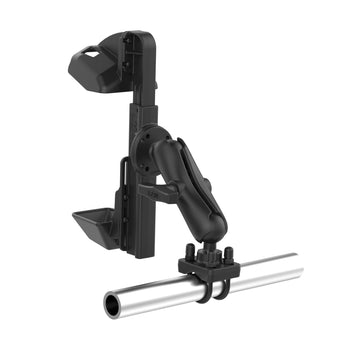

RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with Double U-Bolt Base
Part#:RAM-101-235-1-ZE9U UPC:793442012839 Patented
Ball size C
Arm length Medium
2 099 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300
  • Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...

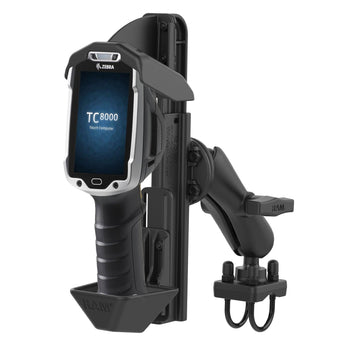

This RAM® Quick-Draw™ is designed specifically for the Zebra TC8000 and TC8300 scanners using a unique spring loaded mechanism that holds strong, yet provides easy removal for storage. At each end of the spring loaded cradle are small cups that are designed to fit cleanly around either edge of the scanner. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".

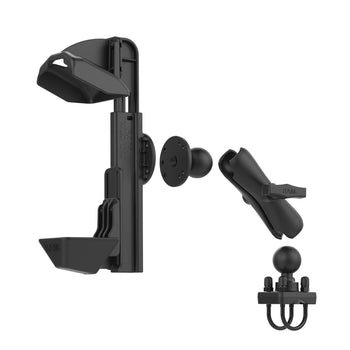

hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nyloc Nuts
(4) Rubber Caps
clamp range

1.25" - 1.5" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.953 kg
