RAM® Double Ball Mount with Steel Backing Plate
Part#:RAM-101-B-SAE1P-2U UPC:793442138102
Ball Icon C SIZE
Arm Icon SHORT ARM
1 289 kr
  • Drill-down mount with two 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate connects to RAM® components containing the universal AMPS hole pattern
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

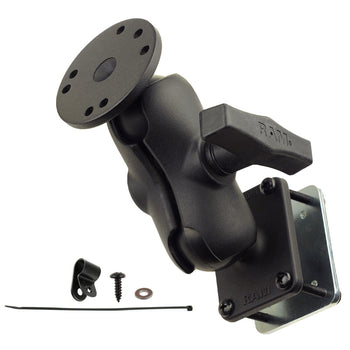

The RAM-101-B-SAE1P-2U consists of a short double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
hardware included

(1) 2.1 X 2.6" Steel Backing Plate
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nylock Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip
(1) 8" Zip Tie

product dimensions

Overall Height: 5.225"

socket to socket length

2.5"

hole pattern

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"

plate size

Round Plate: 2.5" Diameter
Rectangular Plate: 2" x 2.5"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite
Steel

packaging type

Poly Bag

Weight

0.565 kg
