RAM® Double Ball Mount - Aluminum Backing Plate Medium
Part#:RAM-101-SAE1 UPC:793442911552
Ball size C
Arm length Medium
1 799 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products

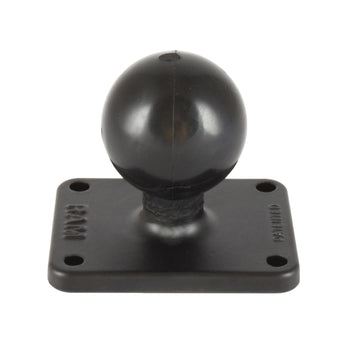

RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...

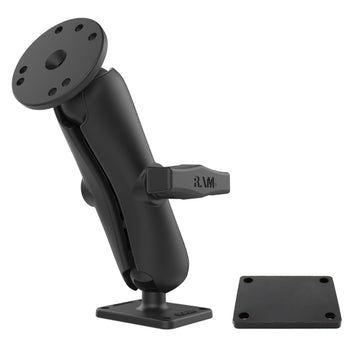

The RAM-101-SAE1 consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 2" x 2.5" rectangular base that has pre-drilled holes at each corner of the base plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit comes with a backing plate and is a drill-down mount.
hardware included

(1) 2" x 2.5" Aluminum Backing Plate
(1) 8" Zip Tie
(4) #10-24 x 1.5" Machine Screws
(4) #10-24 Nyloc Nuts
(1) #8 x 1/2" Sheet Metal Screw
(1) #8 Washer
(1) 5/16" Wire Clip
product dimensions

Overall Height: 7.35"
socket to socket length

4.66"
hole pattern

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 1.5" x 2"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Box
Weight

0.671 kg
