RAM® Double Ball Mount with Unified Barcode Hardware
Part#:RAM-101-UNF1 UPC:793442927133
Ball Icon C SIZE
Arm Icon MED ARM
1 629 kr

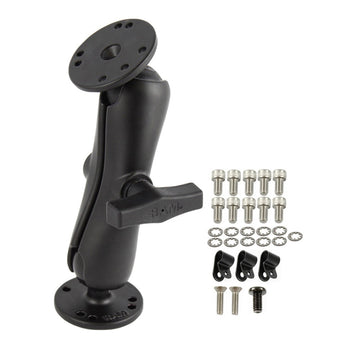

The RAM-101-UNF1 consists of a double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern as well as the hardware needed to attach a Unified Barcode Scanner to one side of the mount.
hardware included

(2) #8-32 x 5/8" Machine Screws
(10) #10-32 x 3/8" Socket Head Cap Screws
(11) #10 Tooth Lock Washers
(1) #10-32 x 3/8" Machine Screw
(3) 5/16" Wire Clips

product dimensions

Overall Height: 7.35"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Box

Weight

0.628 kg
