RAM MOUNT AND TAB-TITE FOR IPAD AIR W/ CASE AND BACKING PLAT
Part#:RAM-101B2-TAB20U UPC:793442816567 Patented
Ball Icon C SIZE
Arm Icon SHORT ARM
1 949 kr
  • Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

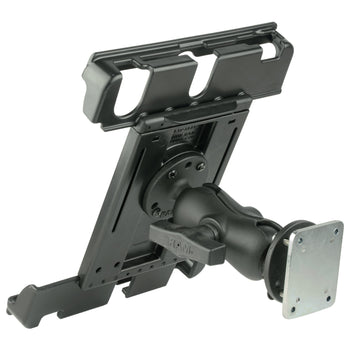

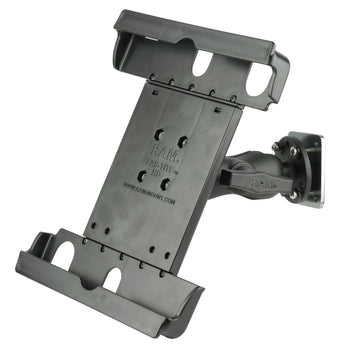

This rugged dashboard tablet mount consists of a RAM® Tab-Tite™ spring loaded holder for any 9"-10.5" tablets with a case, medium C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

This rugged dashboard tablet mount consists of a RAM® Tab-Tite™ spring loaded holder for any 9"-10.5" tablets with a case, medium C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
hardware included

Assembly Hardware

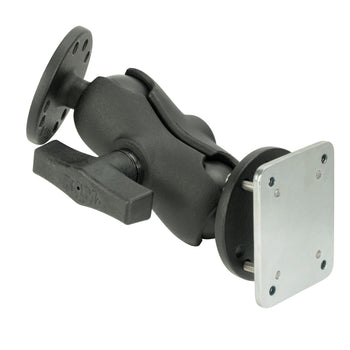

(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

holder dimensions

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type

Poly Bag

Weight

0.862 kg

iPad (5th Generation) with Case

iPad (6th Generation) with Case

iPad (7th Generation) with Case

iPad (8th Generation) with Case

iPad (9th Generation) with Case

iPad (10th Generation) with Case

iPad 9.7 (2017) with Case

iPad 9.7 (2018) with Case

iPad Air with Case

iPad Air 2 with Case

iPad Pro 10.5 (2nd Generation) with Case

ZenPad 10 with Case

ZenPad 3S 10 with Case

ZenPad Z10 with Case

MediaPad M2 10.0 with Case

Tab 2 A10-70 with Case

Tab 4 10 with Case

Tab 4 10 Plus with Case

Tab3 10 Business with Case

Yoga Tab 3 10 with Case

G Pad 10.1 with Case

G Pad II 10.1 with Case

G Pad X 10.1 with Case

G Pad X II 10.1 with Case

Surface Go with Case

Surface Go 2 with Case

Galaxy Tab 10.1 with Case

Galaxy Tab 3 10.1 with Case

Galaxy Tab 8.9 with Case

Galaxy Tab A 9.7 with Case

Galaxy Tab A 10.5 with Case

Galaxy Tab Pro 10.1 with Case

Galaxy Tab S2 9.7 with Case

Galaxy Tab S3 9.7 with Case

Galaxy Tab S4 10.5 with Case

Galaxy Tab S6 with Case

Galaxy Tab S7 with Case

Galaxy Tab S8 with Case

Xperia Tablet Z with Case

MatrixPad Z4 10"
