- RAM® Tough-Case™ provides a tethered USB Type-C to USB Type-C connection providing charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3

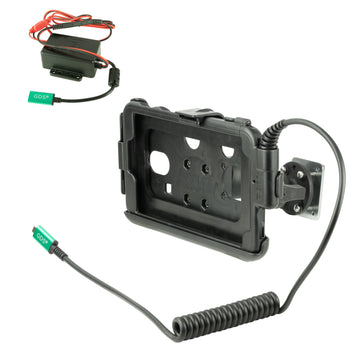

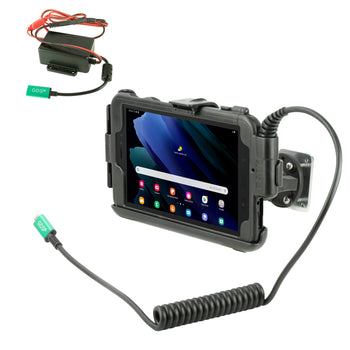

- Includes RAM® Tough-Case™ holder, RAM® C size double ball mount, backing plate and hardwire charger for dashboard installation
- Supports the Tab Active3's 'No Battery Mode' feature
- RAM® Tough-Case™ has integrated 4ft coiled cable and durable oversized strain relief to keep the tablet connected to the power source while undocked
- Integrated S Pen holder
| hardware included |
Assembly Hardware |
| socket to socket length |
2.5" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| input voltage |
12-24VDC |
| output voltage |
5V @ 3A (15W) |
| power output |
37.5W Total |
| output current |
3A max |
| input connector |
Female USB Type-C |
| input cable length |
1.2 Meters including 2 Pole Flat Marine Connector |
| output cable length |
150mm |
| operating temperature |
-20°C to +70°C |
| storage temperature |
-40°C to +85°C |
| regulatory |
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP) |
| certifications |
FCC, IC, CE RCM, WEEE, RoHS Compliant |
| Warranty |
3 year warranty |
| Weight |
1.193 kg |
Consists of
Tab Active3
Tab Active5
