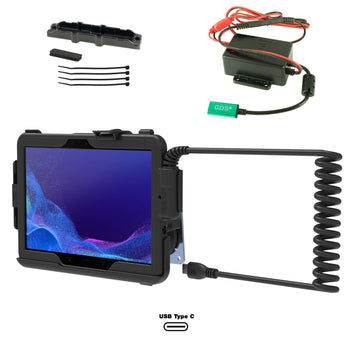

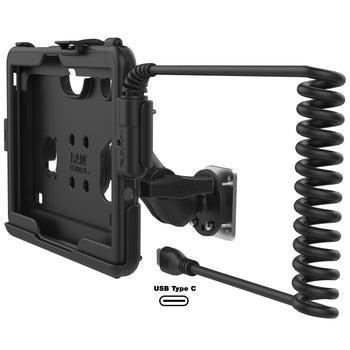

RAM® Tough-Case™ Bundle for Tab Active5 Pro & 4 Pro
Part#:RAM-101B2-TC-SAM54C-V3FCU UPC:793442015588 Patented & Pats. Pend.
Ball Icon C SIZE
Arm Icon SHORT ARM
7 479 kr
  • RAM® Tough-Case™ holder provides charging capabilities for the Samsung Galaxy Tab Active5 Pro in a RAM® Tough-Case™
  • Includes RAM® C size double mount, backing plate and Power Delivery Hardwire Charger for dashboard installation
  • Tethered connection of tablet to vehicle with coiled cable and durable oversized strain relief
  • Compartment on the back of the holder for optional cooling fan
  • Integrated S Pen holder

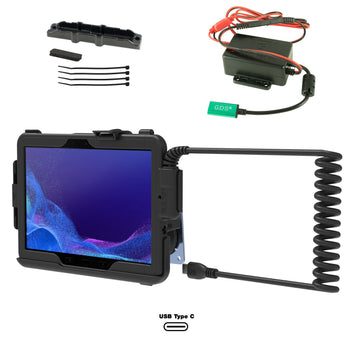

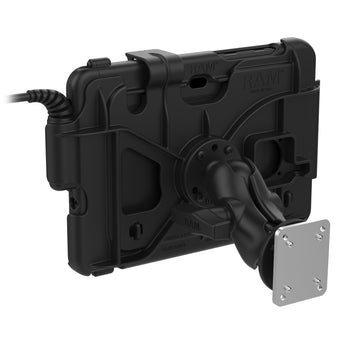

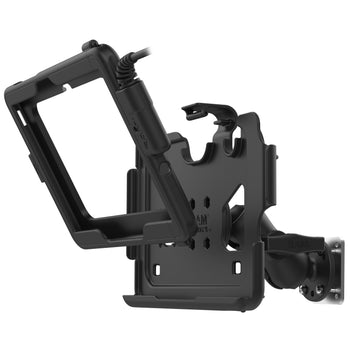

The RAM® Tough-Case™ bundle is a rugged mount including the RAM® Tough-Case™, Tough-Case™ holder, C size double ball mount, backing plate and Power Delivery Hardwire Charger. The RAM® Tough-Case™ bundle is a two-piece enclosure for the Samsung Galaxy Tab Active5 Pro & 4 Pro that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance and supports the device in No Battery Mode. This ultra-low cost bundle provides power to the device through a USB Type-C Male connector. The back of the tablet remains well exposed to allow heat to flow from the device to help maintain temperature levels. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® Power Delivery Hardwire Charger – an ideal solution for providing power to the Samsung Galaxy Tab Active5 Pro & 4 Pro. Get the Heat Out!™ with RAM® Tough-Case™.
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Modular Hardwire Charger
Cable Clamp Assembly
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
input voltage

12-24VDC
output voltage

5V @ 3A (15W)
9V @ 3A (27W)
12V @ 3A (36W)
15V @ 2.5A (37.5W)
power output

37.5W Total
output current

3A max
input connector

Female USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

150mm
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications

FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
Warranty

3 year warranty
Weight

1.313 kg

Consists of

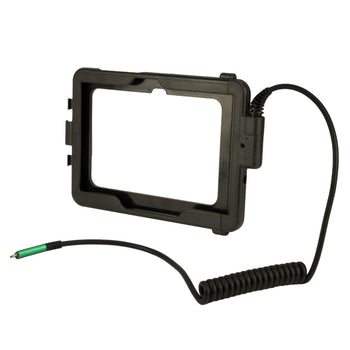

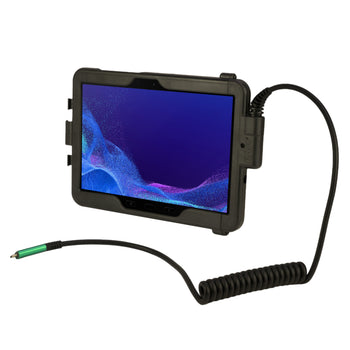

RAM® Tough-Case™ for Tab Active Pro and Active4 Pro – Type-C Male USB RAM-TC-SAM54CU
2 599 kr

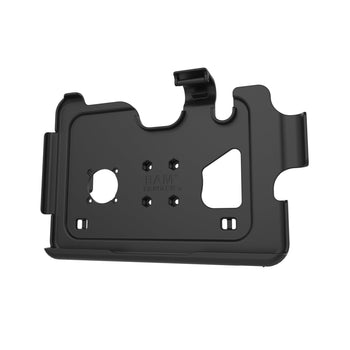

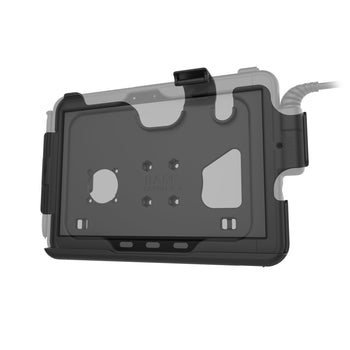

RAM® Tough-Case™ Holder for Samsung Tab Active4 Pro & Tab Active Pro RAM-HOL-TC-SAM54U
599 kr
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short RAM-101-B-225B2U
Ball Icon C SIZE
Arm Icon SHORT ARM
1 289 kr
GDS® Hardwire USB Type-C Power Delivery Charger – No Cable RAM-GDS-CHARGE-V3FC-2U-NC
1 679 kr
Sold out
GDS® Cable Clamp for Rugged Aluminum Housing USB-A & USB-C Cables RAM-GDS-CAB-CLAMP3U
159 kr

Galaxy Tab Active5 Pro

Galaxy Tab Active4 Pro

Galaxy Tab Active Pro
