RAM® Universal Post Clamp Mount with Round Plate - C Size Medium Arm
Part#:RAM-101U-247 UPC:793442018640
Ball Icon C SIZE
Arm Icon MED ARM
1 989 kr
  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a medium length, C size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

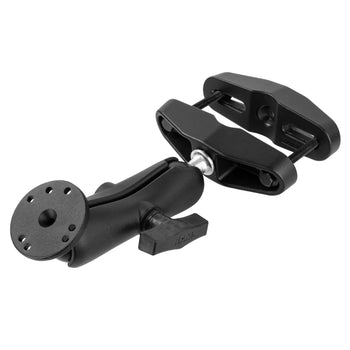

The RAM® Universal Post Clamp Mount with Round Plate - C Size Medium Arm (RAM-101U-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size medium arm, one (1) round plate with C size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware

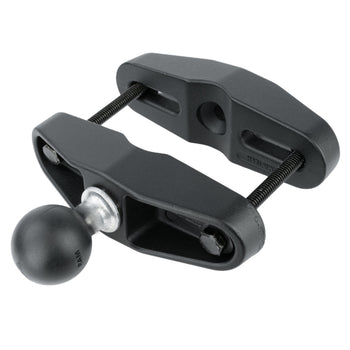

clamp range

1.75" - 4" width

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

1.058 kg

Består av

RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
359 kr
RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
589 kr
