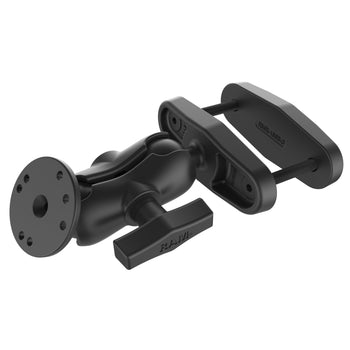

RAM® 3" Square Post Clamp Mount with Round AMPS Plate - Short Arm
Part#:RAM-101U-B-247-3 UPC:793442943072
Ball Icon C SIZE
Arm Icon SHORT ARM
1 639 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
The RAM-101U-B-247-25 consists of a short length double socket arm, 2.5" diameter round base with the universal AMPS hole patternand a 3" maximum width square post clamp base.
hardware included

(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
clamp range

3" max width
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.703 kg

Consists of

RAM® Square Post Clamp Base for Posts up to 3" Wide - C Size RAM-247U-3
Ball Icon C SIZE
Arm Icon ARM
889 kr
RAM® Double Socket Arm - C Size Short RAM-201U-B
Ball Icon C SIZE
Arm Icon SHORT ARM
489 kr
RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
319 kr
