RAM SYSTEM FOR ZEBRA AN17018-1
Part#:RAM-101U-ZE1 UPC:793442101175
Ball Icon C SIZE
Arm Icon MED ARM
1 249 kr

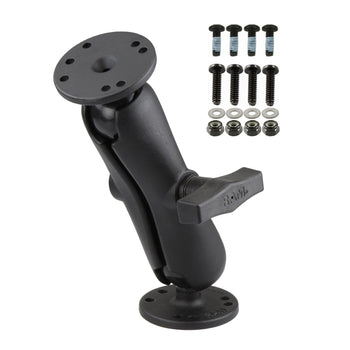

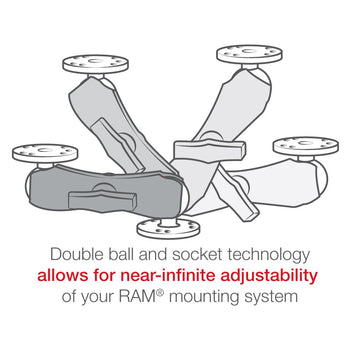

The RAM-101U-ZE1 consists of a medium length double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

The RAM-101U-ZE1 consists of a medium length double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern and hardware to attach to the Zebra RW 420 printer. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
hardware included

(4) #10-24 x 3/4" Machine Screws
(4) #10 Stainless Steel Flat Washers
(4) #10-24 Nylock Nuts
(4) #8-32 x 1/2" Machine Screws

product dimensions

Overall Height: 7.35"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.562 kg
