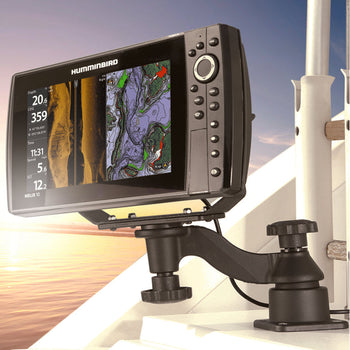

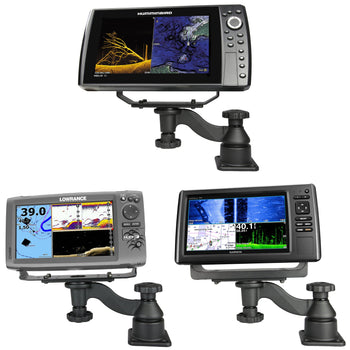

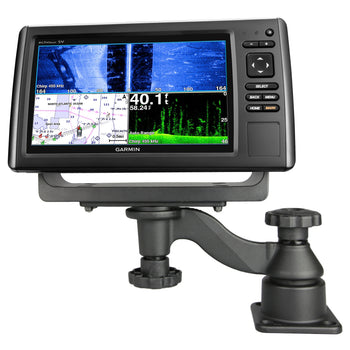

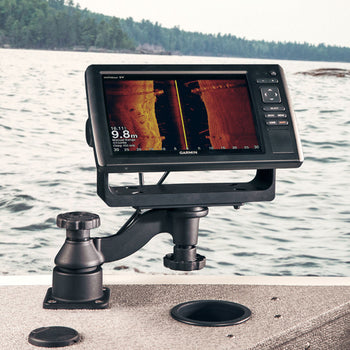

RAM® Horizontal 6" Swing Arm Mount for Fish Finders & Plotters
Part#:RAM-109H UPC:793442934407
1 349 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
RAM® Pin-Lock™ Security Kit for Single Swing Arms and Gimbal Brackets
Recommended add-on
RAM® Pin-Lock™ Security Kit for Single Swing Arms and Gimbal Brackets
669 kr
Details
  • Universal drill-down fish finder mounting solution features 6" swing arm for ideal device placement

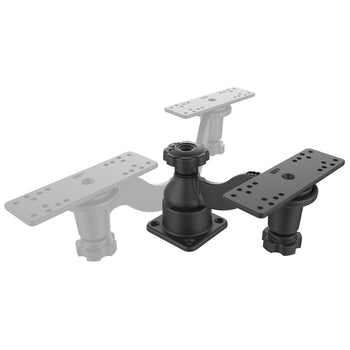

  • Two pivot points allow for complete 360-degree rotation
  • Made of powder-coated steel and high-strength composite
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Pin-Lock™ Security Kit for Single Swing Arms and Gimbal Brackets
RAM® Pin-Lock™ Security Kit for Single ...
RAM® Pin-Lock™ Security Kit for Single Curved Swing Arms
RAM® Pin-Lock™ Security Kit for Single ...
RAM® 6" Curved Extension Swing Arm for Horizontal/Vertical Mounts
RAM® 6" Curved Extension Swing Arm for ...

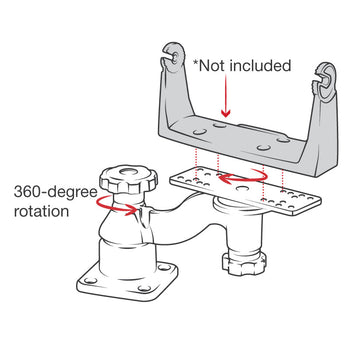

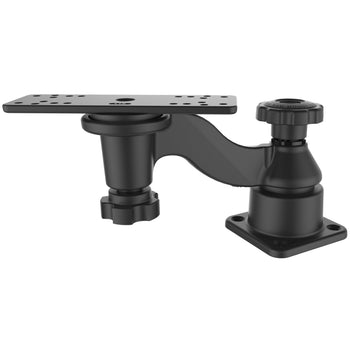

The RAM-109H consists of a 6" long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.
product dimensions

Overall Height: 5.41"
Total Swing Arm Length: 6"
hole pattern

Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
plate size

Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
weight capacity

8 lbs
materials

Marine-grade aluminum
packaging type

Retail Packed
Weight

1.134 kg
Additional information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
