RAM HORZ. SWING ARM SYSTEM W/O DBL. ARM
Part#:RAM-109H-2BU UPC:793442913211
Ball Icon C SIZE
Arm Icon ARM
2 199 kr

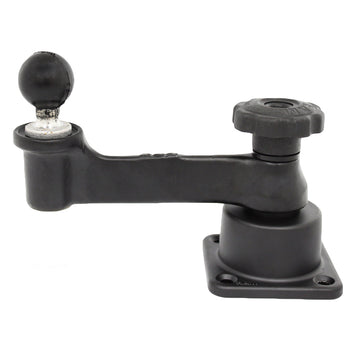

The RAM-109H-2BU consists of a 6" long straight swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a round 1.5" diameter ball. The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.

The RAM-109H-2BU consists of a 6" long straight swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a round 1.5" diameter ball. The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.
hole pattern

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.757 kg
