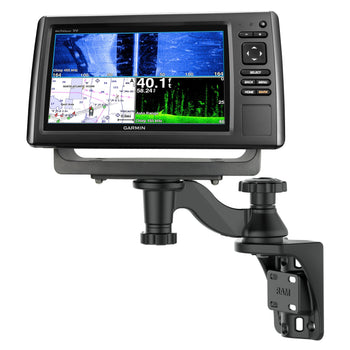

RAM® Vertical 6" Swing Arm Mount for Fishfinders & Plotters
Part#:RAM-109V UPC:793442934391
1 599 kr
  • Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement on a vertical surface

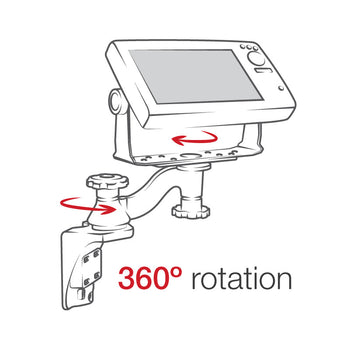

  • Two pivot points allow for complete 360-degree rotation
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

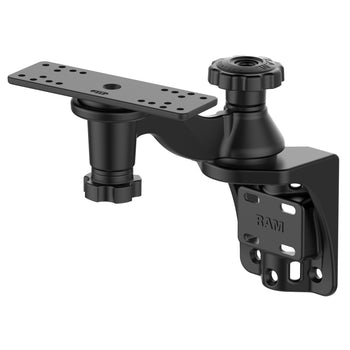

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.
product dimensions

Overall Height: 8.45"
Total Swing Arm Length: 6"
hole pattern

See Drawing
plate size

Top Plate: 6.25" x 2"
Bottom Plate: 3.97" x 4.85"
weight capacity

8 lbs
materials

Marine-grade aluminum
packaging type

Retail
Weight

1.406 kg
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Består av

RAM® Vertical Swing Arm Base RAM-109V-BU
669 kr
RAM® 6" Curved Swing Arm for Horizontal/Vertical Mounts RAM-109-1APU
749 kr
RAM® Rectangular Plate Adapter for Swing Arm Mounts RAM-111BTU
459 kr

echoMAP Chirp 72-95 Series

ECHOMAP Plus 72-97 Series

ECHOMAP UHD 62-95 Series

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

ECHOMAP UHD2 9"

ECHOMAP Ultra 102sv

ECHOMAP Ultra 106sv

ECHOMAP Ultra 2 10"

ECHOMAP Ultra 2 12"

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

GPSMAP 8410

GPSMAP 8410xsv

GPSMAP 8412

GPSMAP 8412xsv

GPSMAP 8416

GPSMAP 8416xsv

GPSMAP 8610

GPSMAP 8610xsv

GPSMAP 8612

GPSMAP 8612xsv

GPSMAP 8616

GPSMAP 8616xsv

GPSMAP 922

GPSMAP 922xs

GPSMAP 923

GPSMAP 923xsv

GPSMAP 942

GPSMAP 942xs

GPSMAP 943

GPSMAP 943xsv

GPSMAP 1223

GPSMAP 1223xsv

GPSMAP 1243

GPSMAP 1243xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Striker Plus 9sv

Striker Vivid 9sv

Fishfinders and GPS Chartplotters

Apex 13

Apex 16

Helix 8

Helix 9

Helix 10

Helix 12

Helix 15

Solix 15

Fishfinders and GPS Chartplotters

Elite FS 7

HDS Carbon 7

HDS LIVE 7

HDS LIVE 9

HDS LIVE 12

HDS PRO 9

HDS PRO 10

HDS PRO 12

HDS PRO 16

Hook Reveal 7 Series

Hook Reveal 9 Series

HOOK-9

Fishfinders and GPS Chartplotters
