UNPKD RAM UNIVERSAL ELECTRONIC MOUNT WITH CABLE MANAGER
Part#:RAM-111-403U UPC:793442008306
Ball Icon C SIZE
Arm Icon MED ARM
1 489 kr
  • Complete flat surface, drill-down mounting solution with an overall height of 7.35"; RAM® ball and socket technology allows for near-infinite adjustability

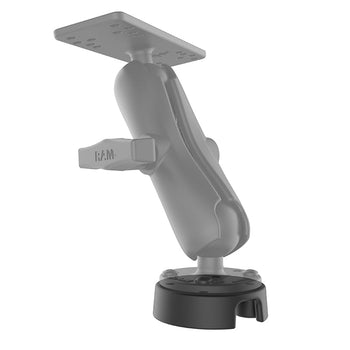

  • Includes RAM® cable manager to route electrical wiring and cover installation holes
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

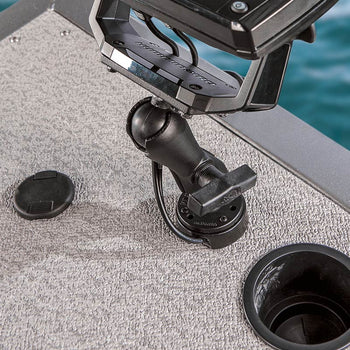

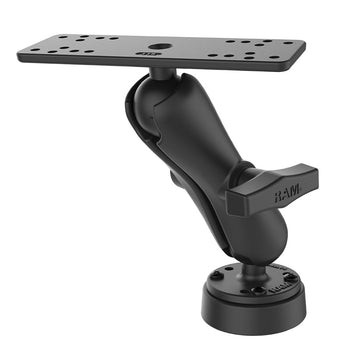

This marine electronic mounting kit consists of a medium double socket arm, 2.5" diameter round base, 6.25" x 2" rectangle base, and the RAM® cable manager. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. To route electrical wiring and cover installation holes cleanly, this kit also features the RAM® cable manager. While creating a barrier between the surface mount and the attachment area, the cable manager helps to minimize vibration while reducing fiberglass and gel-coat damage.

This marine electronic mounting kit consists of a medium double socket arm, 2.5" diameter round base, 6.25" x 2" rectangle base, and the RAM® cable manager. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters. To route electrical wiring and cover installation holes cleanly, this kit also features the RAM® cable manager. While creating a barrier between the surface mount and the attachment area, the cable manager helps to minimize vibration while reducing fiberglass and gel-coat damage.
hardware included

(4) #10-24 x 2" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10 Fender Washers

product dimensions

Overall Height: 7.95"
Cable Slot Height: .56"
Cable Slot Width: .7"

clamp range

Max mounting surface thickness: .68"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

Top Plate: 6.25" x 2"
Bottom Plate: 2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.717 kg

Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

ECHOMAP Plus 72cv

ECHOMAP Plus 73cv

ECHOMAP Plus 74cv

ECHOMAP Plus 75cv

ECHOMAP Plus 77cv

ECHOMAP UHD2 52cv

ECHOMAP UHD2 72cv

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Elite FS 7

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters
