RAM® PTT Remote Speaker Mic Bundle for Sonim XP5plus
Part#:RAM-138-S-SNM3PL-V7B1-1U UPC:793442035050
Ball Icon C SIZE
Arm Icon MED ARM
7 969 kr
Incl. VAT
  • Bundle for Sonim XP5plus includes powered locking holder, remote speaker microphone, and mounting bracket for all-in-one communication
  • Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP5plus provides charging through two integrated pogo pins and USB-A cable
  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • RAM® components backed by lifetime warranty dock and electronics backed by a 3-year warranty

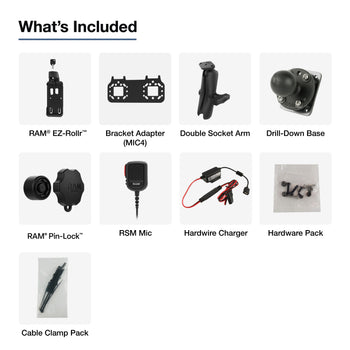

The RAM® PTT Remote Speaker Mic Bundle for Sonim XP5plus (RAM-138-S-SNM3PL-V7B1-1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM® Pin-Lock™ Security Knob, a RAM® Remote Speaker Mic with a custom connector designed for Sonim, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided RAM® Remote Speaker Mic plugs directly into the Sonim unit. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.
hardware included

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) Modular Hardwire Charger
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder coated steel
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

Charger: Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.0 kg

Consists of

RAM® EZ-Roll'r™ Powered Locking Dock for Sonim XP5plus RAM-HOL-SNM3PLU
2 019 kr
RAM® Short Bracket Adapter for PTT Remote Speaker Microphones RAM-101-MIC4U
249 kr
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium RAM-138-225B2U
Ball Icon C SIZE
Arm Icon MED ARM
1 229 kr
RAM® Pin-Lock™ Security Knob for C Size Socket Arms RAP-S-KNOB5U
229 kr
GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector RAM-GDS-CHARGE-V7B1U
639 kr
