UNPKD RAM TAB-TITE 10 W/ RAM-138 MNT
Part#:RAM-138-TAB17U UPC:793442943218 Patented
Ball Icon C SIZE
Arm Icon MED ARM
1 799 kr
  • Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) with case and more; interchangeable end cups allow you to modify the holder when upgrading devices

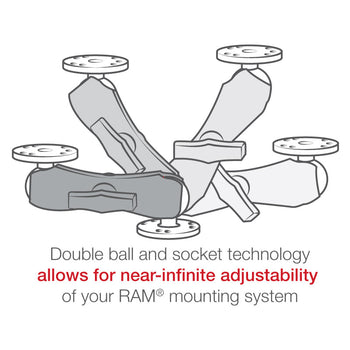

  • Includes C size medium length double socket arm and 2.5" diameter round base; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

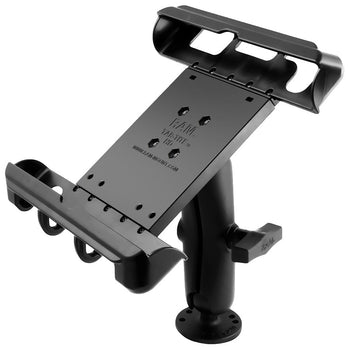

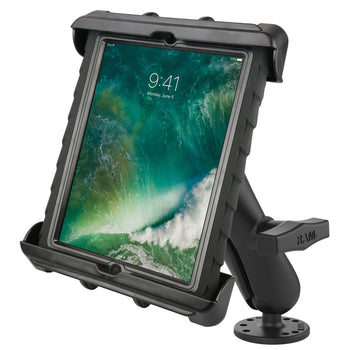

The RAM® Tab-Tite™ drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The included RAM® Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

The RAM® Tab-Tite™ drill-down mount for large tablets consists of a 2.5" diameter C size round base with the universal AMPS hole pattern, double socket arm, round base adapter and RAM® Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The included RAM® Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets with heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The RAM® Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware

holder dimensions

Height Range: 9.5" - 11.75"
Width Range: 6.375" - 8.25"
Depth Range: .13" - 1.1"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.744 kg

iPad (1st Generation) with Case

iPad 2 with Case

iPad (3rd Generation) with Case

iPad (4th Generation) with Case

iPad Air 4 with Case

iPad Air 5 with Case

iPad Pro 11" with Case

iPad Pro 11" (2020) with Case

Venue 10 7000 with Case

Nexus 10 with Case

ElitePad 900 G1 with Case

Pro 610 with Case

Pro Slate 10.1 with Case

S6000 with Case

Yoga Tablet 2 (10 inch) with Case
