RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
Part#:RAM-149Z-B-202U UPC:793442020155 Patented
Ball Icon C SIZE
Arm Icon SHORT ARM
1 189 kr
  • Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes, C size (1.5") 4-hole round RAM® ball adapter, U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

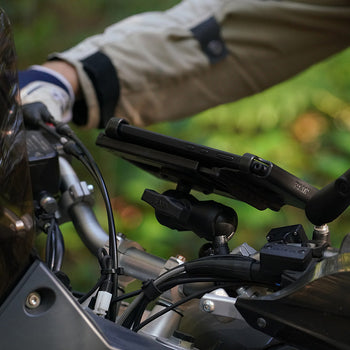

The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.463 kg
