RAM® Double Socket Arm - C Size Short

Standard

Retail Packed

RAM® Double Socket Arm - C Size Short

Part#:RAM-201-B UPC:793442020124

RAM-201-B:RAM-201-B_2:RAM® Double Socket Arm - C Size Short

RAM-201-B:RAM-201-B_3:RAM® Double Socket Arm - C Size Short

RAM-201-B:RAM-201-B_4:RAM® Double Socket Arm - C Size Short

RAM-201-B:RAM-201-B_5:RAM® Double Socket Arm - C Size Short

RAM® Double Socket Arm - C Size Short

Part#:RAM-201-B UPC:793442020124

Ball Size

B Size C Size D Size E Size

Arm Length

Short Arm Medium Arm Long Arm

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

		A Size	B Size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42″ (6.1 cm)	3.56″ (9.0 cm)	5.69″ (14.5 cm)	5.69″ (14.5 cm)
Short	Socket-to-Socket Length	N/A	1.75″ (4.4 cm)	2.5″ (6.4 cm)	4.66″ (11.8 cm)	4.66″ (11.8 cm)
Medium	Overall Length	2.42″ (6.1 cm)	3.73″ (9.5 cm)	5.69″ (14.5 cm)	8.44″ (21.4 cm)	12.63″ (32.1 cm)
Medium	Socket-to-Socket Length	1.75″ (4.4 cm)	3″ (7.6 cm)	4.66″ (11.8 cm)	6.88″ (17.5 cm)	9.88″ (25.1 cm)
Long	Overall Length	3.56″ (9.0 cm)	6″ (15.2 cm)	9.13″ (23.2 cm)	12.98″ (33.0 cm)	N/A
Long	Socket-to-Socket Length	3.12″ (7.9 cm)	5.31″ (13.5 cm)	8″ (20.3 cm)	11.41″ (29.0 cm)	N/A

489 kr

Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Recommended add-on

RAM® Round Plate with Ball - C Size

319 kr

Details

Low-profile design with an overall length of 3.56" and a socket-to-socket length of 2.5"

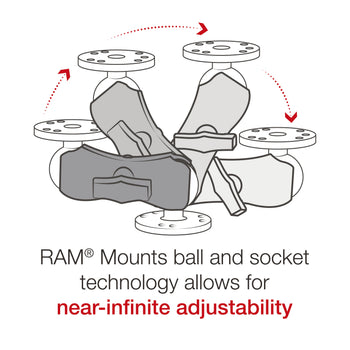

Attaches to any C size RAM® ball component, including mounting bases and device holders double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Products

RAM® Add-A-Ball™ Accessory Ball for C S...

RAM® Pin-Lock™ Security Knob for C Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

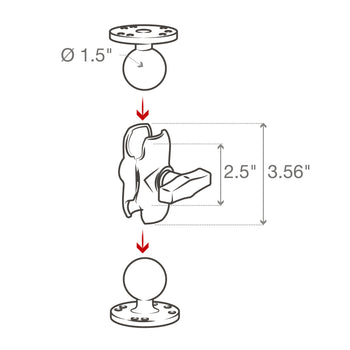

The RAM-201-B consists of a short double socket arm that accommodates 1.5" C size ball bases, device holders, and adapters. With an overall length 3.56", this is the shortest RAM® double socket arm size. The easy to adjust knob allows for near-infinite adjustability for your connected device.

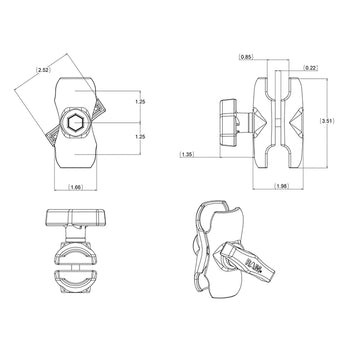

product dimensions	Overall Length: 3.56"
socket to socket length	2.5"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Retail Packed
Weight	0.272 kg
