RAM® Double Socket Arm - C Size Long

Standard

Retail Packed

RAM® Double Socket Arm - C Size Long

Part#:RAM-201-D UPC:793442001734

RAM® Double Socket Arm - C Size Long

Part#:RAM-201-D UPC:793442001734

Ball Size

B Size C Size D Size

Arm Length

Short Arm Medium Arm Long Arm

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

		A Size	B Size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42″ (6.1 cm)	3.56″ (9.0 cm)	5.69″ (14.5 cm)	5.69″ (14.5 cm)
Short	Socket-to-Socket Length	N/A	1.75″ (4.4 cm)	2.5″ (6.4 cm)	4.66″ (11.8 cm)	4.66″ (11.8 cm)
Medium	Overall Length	2.42″ (6.1 cm)	3.73″ (9.5 cm)	5.69″ (14.5 cm)	8.44″ (21.4 cm)	12.63″ (32.1 cm)
Medium	Socket-to-Socket Length	1.75″ (4.4 cm)	3″ (7.6 cm)	4.66″ (11.8 cm)	6.88″ (17.5 cm)	9.88″ (25.1 cm)
Long	Overall Length	3.56″ (9.0 cm)	6″ (15.2 cm)	9.13″ (23.2 cm)	12.98″ (33.0 cm)	N/A
Long	Socket-to-Socket Length	3.12″ (7.9 cm)	5.31″ (13.5 cm)	8″ (20.3 cm)	11.41″ (29.0 cm)	N/A

Availability Only a few left

949 kr

Incl. VAT

In stock — ready to ship

Backed by manufacturer warranty

Exclusive Nordic RAM® distributor

Expert product & mounting support

Recommended add-on

RAM® Round Plate with Ball - C Size

319 kr

Details

Provides an extended reach with an overall length of 9.125" and a socket-to-socket length of 8"
Attaches to any C size RAM® ball component, including mounting bases and device holders double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Products

RAM® Pin-Lock™ Security Knob for C Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

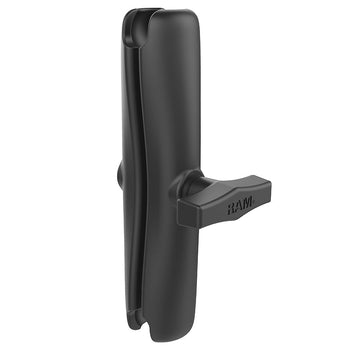

The RAM-201-D consists of a long double socket arm that accommodates 1.5" C size ball bases, device holders, and adapters. With an overall length of 9.125", this is the longest C size RAM® double socket arm size and adds more reach to your favorite mounting solution. The easy to adjust knob allows for near-infinite adjustability.

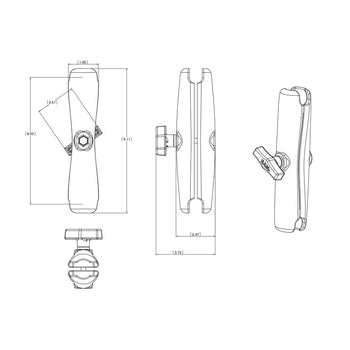

product dimensions	Overall Length: 9.125"
socket to socket length	8"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Retail Packed
Weight	0.844 kg
