RAM® Quick Release Ball Adapter for Lowrance Elite 5 & 7 Ti + More

Part#:RAM-202U-LO11 UPC:793442934018

RAM® Quick Release Ball Adapter for Lowrance Elite 5 & 7 Ti + More

Part#:RAM-202U-LO11 UPC:793442934018

Ball Size

B Size C Size

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

309 kr

Incl. VAT

In stock — ready to ship

Backed by manufacturer warranty

Exclusive Nordic RAM® distributor

Expert product & mounting support

Information

Information
Resources

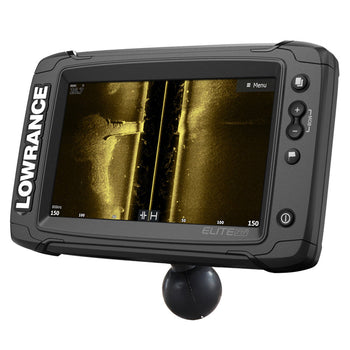

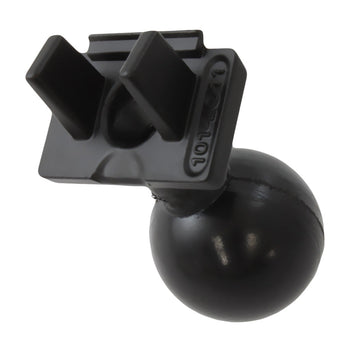

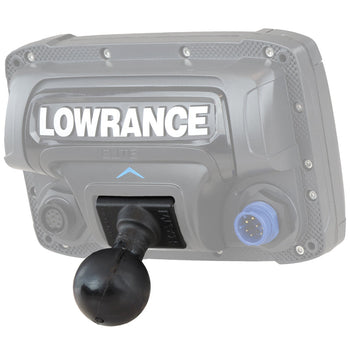

The RAM adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds.

ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.088 kg
Additional information	This product is not compatible with the standard Lowrance Elite-7.

The RAM adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 fish finders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds.

ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.088 kg
Additional information	This product is not compatible with the standard Lowrance Elite-7.

On Water Catalog

Knowledge Base: Ball Sizes

Lowrance	Elite-5, Elite-5 Ti, Elite-7 Ti, Elite-7 Ti², HOOK-3, HOOK-4, HOOK-5, MARK-5
Simrad	GO5 XSE

Compatibility

Size Guide

Reading part numbers
