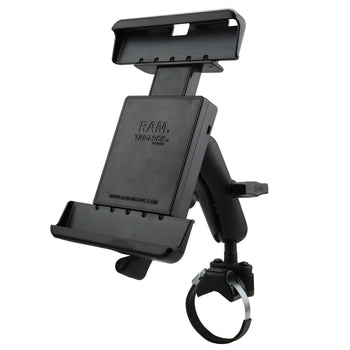

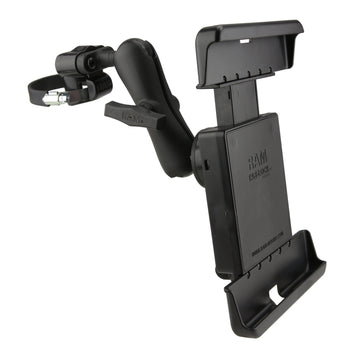

RAM® ATV/Side By Side Rail Mount for 10" Tablets with Heavy Duty Cases
Part#:RAM-231Z-2-TABL25U UPC:793442014338 Patented
Ball size C
Arm length Medium
2 899 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded holder secures most 10" tablets with cases interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes rail and bar base for Side By Sides and ATVs with strap clamp and U-bolt components, 4-hole AMPS pattern ball adapter, and C size medium length double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Add-A-Ball™ Accessory Ball for C Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for C S...
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...

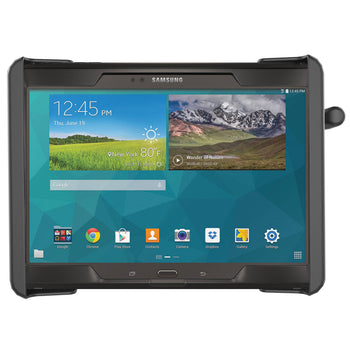

This heavy duty ATV/Side By Side mount is the perfect solution for securing most 10" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on Side By Side’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt. The included RAM® Tab-Lock™ tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

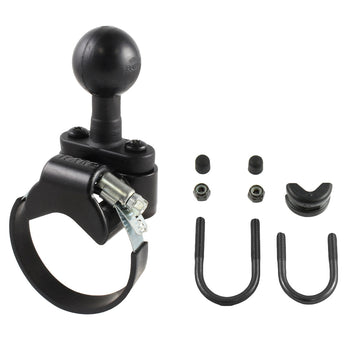

hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nyloc Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions

Height Range: 9.64" - 12.32"
Width Range: 6.13" - 7.4"
Depth Range: .13" - .7"
clamp range

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

1.27 kg
