UNPKD RAM MOUNT VESA PLATE SQUARE TUBE
Part#:RAM-246-247U-25 UPC:793442901744
Ball Icon C SIZE
Arm Icon MED ARM
1 529 kr

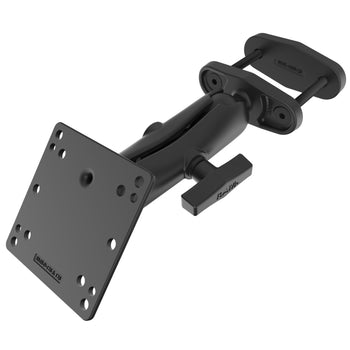

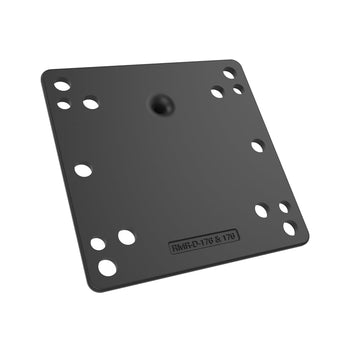

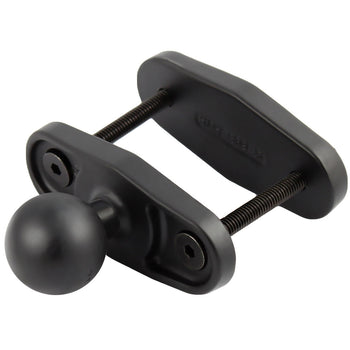

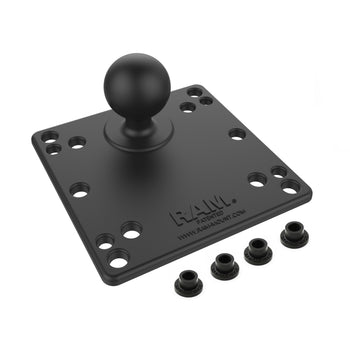

The RAM-246-247U-25 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 2.5" wide.
The RAM-246-247U-25 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 2.5" wide.
hardware included

(4) .312" x .187" Shoulder Washers
(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts
clamp range

2.5" max width
socket to socket length

4.66"
hole pattern

See Drawing
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.885 kg
