RAM® Double Ball Mount with #6-32 Hardware for Garmin GPSMAP + More
Part#:RAM-B-101-G2U UPC:793442000836
Ball Icon B SIZE
Arm Icon MED ARM
699 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions

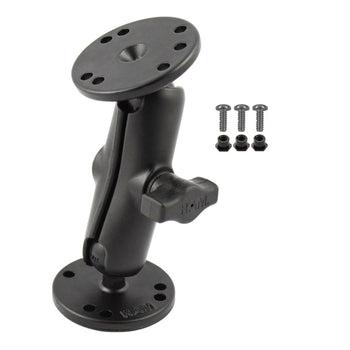

The RAM-B-101-G2U consists of a double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-B-101-G2 mount to your optimum viewing position.
hardware included

(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts

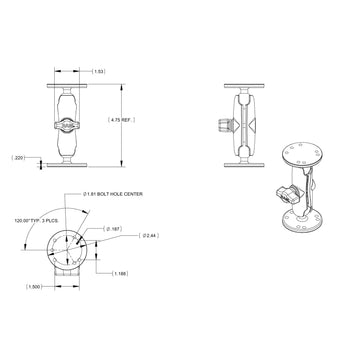

product dimensions

Overall Height: 5"
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.254 kg

Consists of

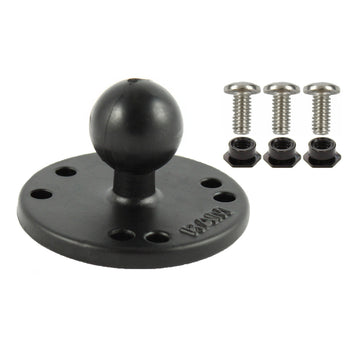

RAM® Round Plate with Ball & #6-32 Hardware for Garmin GPSMAP + More RAM-B-202-G2U
Ball Icon B SIZE
Arm Icon ARM
259 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Round Plate with Ball - B Size RAM-B-202U
Ball Icon B SIZE
Arm Icon ARM
189 kr

Fishfinder 80-120

GPSMAP 172-555
