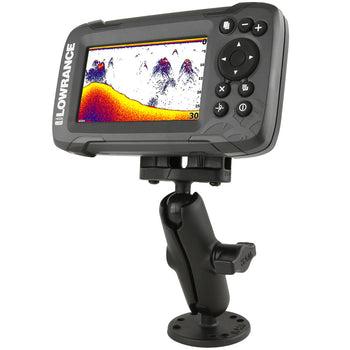

RAM® Double Ball Mount for Lowrance Eagle 4 & 5, Hook² & Reveal Series
Part#:RAM-B-101-LO12 UPC:793442956065 Patented
Ball Icon B SIZE
Arm Icon MED ARM
759 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
Designed for light duty freshwater use, this B size (1”) aluminum drill-down kit for the Lowrance Eagle 4 & 5 and Hook² allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook² and you're ready to connect the double socket arm and round base featuring the AMPS hole pattern. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Eagle 4 & 5 and Hook² secure and stable in rugged environments on your kayak or inflatable.
hardware included

Assembly Hardware
product dimensions

Overall Height: 5"
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Retail Bag
Weight

0.281 kg

Consists of

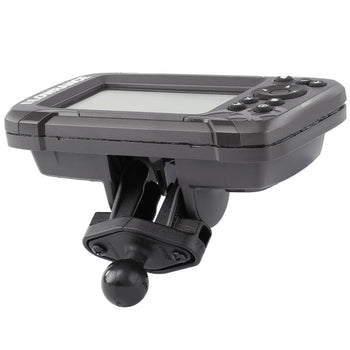

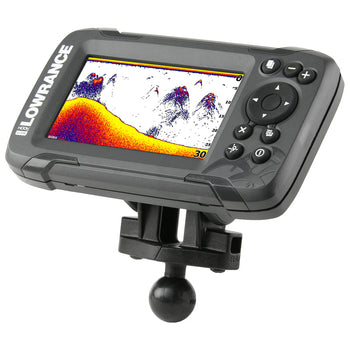

RAM® Ball Adapter for Lowrance Eagle 4 & 5, Hook² & Reveal - B Size RAM-B-202-LO12
Ball Icon B SIZE
Arm Icon ARM
329 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Round Plate with Ball - B Size RAM-B-202U
Ball Icon B SIZE
Arm Icon ARM
189 kr

Eagle 4

Eagle 5

Hook Reveal 5 Series

Hook²-4x

Hook²-5 (Light use only)

Cruise 5
