RAM MOUNT AND TAB-TITE FOR IPAD MINI W/ CASE AND BACKING PLA
Part#:RAM-B-101B2-TAB12U UPC:793442801969 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 449 kr
  • Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

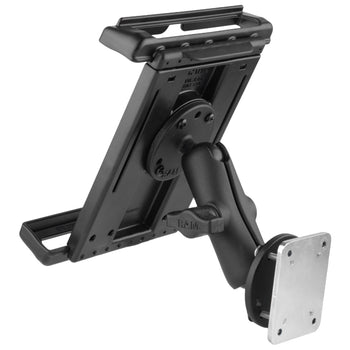

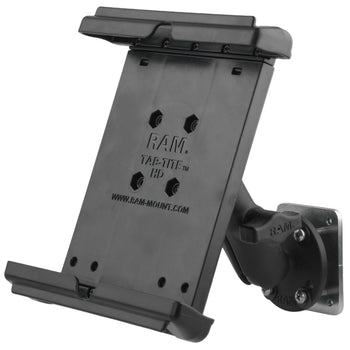

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

holder dimensions

Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type

Poly Bag

Weight

0.472 kg

iPad mini 6 with Case

Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

MeMO Pad 8 with Case

VivoTab 8 with Case

Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Shield Tablet with Case

Toughpad FZ-M1

Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case
