RAM® Strap Hose Clamp Mount with Hardware for Garmin GPSMAP + More
Part#:RAM-B-108-G1 UPC:793442110825
Ball Icon B SIZE
Arm Icon MED ARM
1 089 kr
The RAM-108-G1 consists of the 1" dia. ball and socket system with RAM Universal 2.5" diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5" Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0" to a maximum of 1.9". The 1" rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0" and one 8.0" long metal strap is included with this base along with a 5.5" long (approximate) strip of rubber to avoid any scratching or marking of your rail.

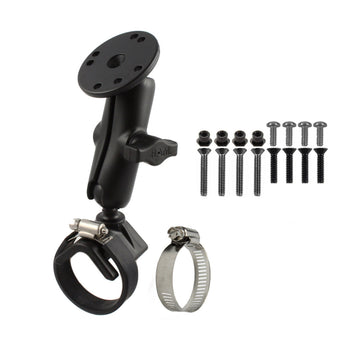

hardware included

(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

clamp range

1" - 2.1" diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Retail Bag

Weight

0.345 kg

Består av

StreetPilot III

GPSMAP 172-250
