UNPKD RAM YOKE STRAP MNT GARMIN 695 696
Part#:RAM-B-108-GA38U UPC:793442927669 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon MED ARM
1 539 kr

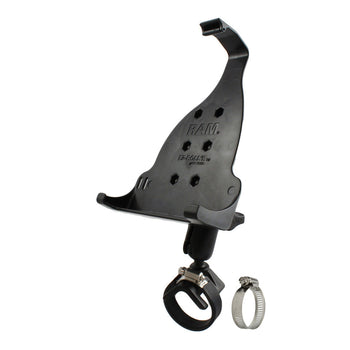

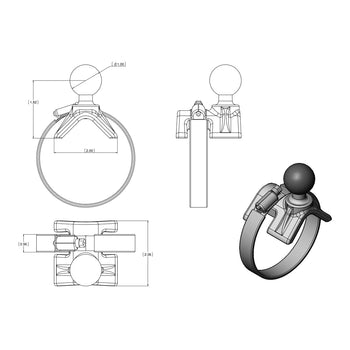

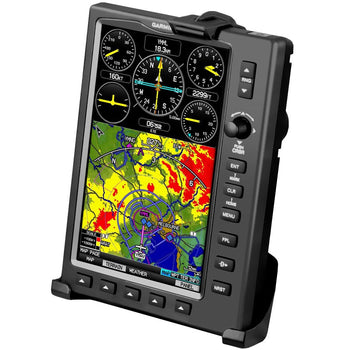

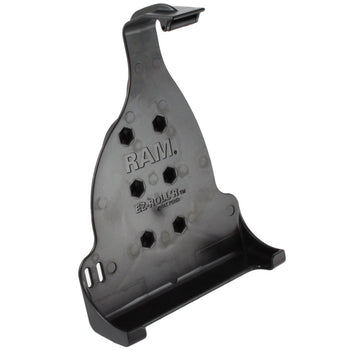

The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP® 695 and 696. The v-saddle strap base accommodates rails from 1" to a maximum of 3" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.

The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP® 695 and 696. The v-saddle strap base accommodates rails from 1" to a maximum of 3" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
hardware included

Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

clamp range

1" - 2.1" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.277 kg

GPSMAP 695

GPSMAP 696
