UNPKD RAM MNT W/ RAIL TUBE W/ 1/4-20
Part#:RAM-B-108B-A-237U UPC:793442934483
Ball Icon B SIZE
Arm Icon SHORT ARM
919 kr

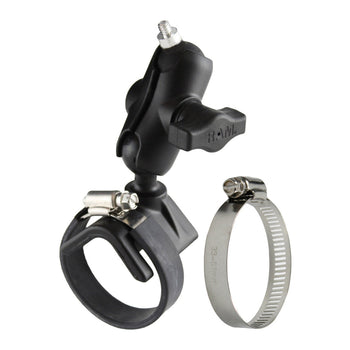

The RAM-B-108B-A-237U consists of a short length B size arm with a 1/4"-20 threaded post and a strap clamp base for rails from 1" to 2.1" in diameter.

The RAM-B-108B-A-237U consists of a short length B size arm with a 1/4"-20 threaded post and a strap clamp base for rails from 1" to 2.1" in diameter.
hardware included

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

clamp range

1" - 2.1" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.281 kg

that contain 1/4"-20 Female Threaded Hole
