RAM® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Short
RAM® Strap Hose Clamp Mount with 1/4"-20 Camera Adapter - Short
B SIZE
SHORT ARM
909 kr

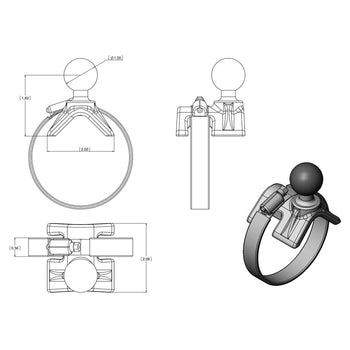

The RAM-B-108B-A-366U consists of a v-shaped strap base, short double socket arm and 1" ball with 1/4"-20 threaded steel stud. The base accommodates rails from 1.0" to a maximum of 2.1" in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The camera plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
| hardware included |
(1) #20 Worm Drive Strap Clamp |
| clamp range |
1" - 2.1" diameter |
| socket to socket length |
1.75" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.222 kg |
Består av
RAM® Ball Adapter with 1/4"-20 Threaded Stud for Action Cameras - B Size
RAP-B-366U
B SIZE
ARM
239 kr
B SIZE
ARM
that contain 1/4"-20 Female Threaded Hole
