UNPKD RAM TAB-TITE HOLDER FOR 8 TABLETS WITH YOKE CLAMP
Part#:RAM-B-121-TAB12U UPC:793442201066 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 699 kr
  • Spring-loaded holder secures iPad mini 6 and previous mini models with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Yoke clamp base fits rails from .625" to 1.25" in diameter for the ideal airplane mount
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

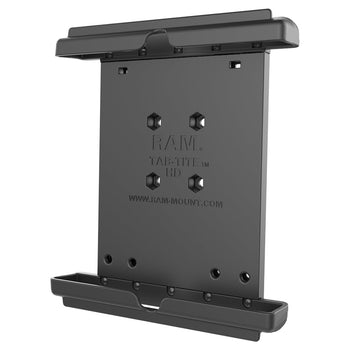

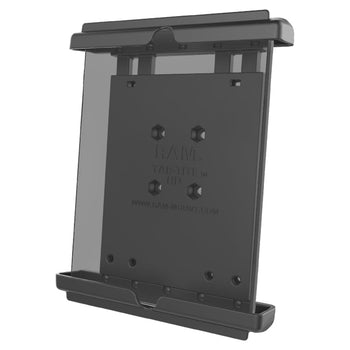

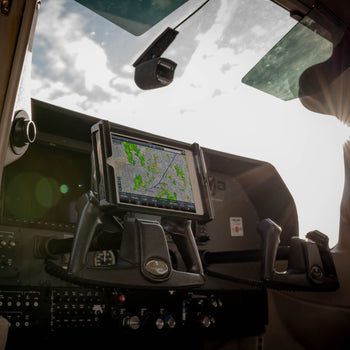

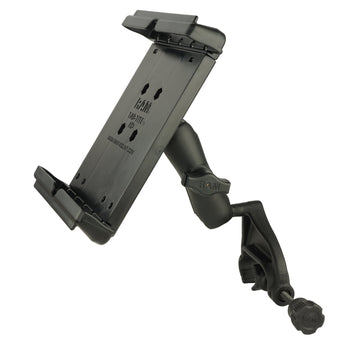

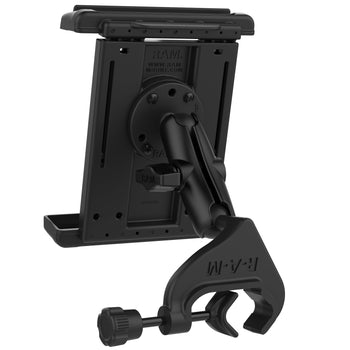

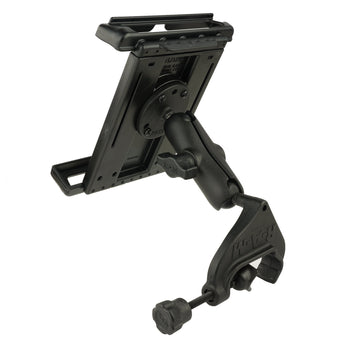

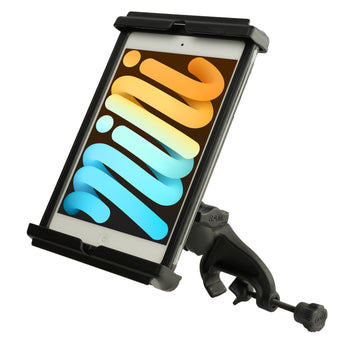

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini 6 as well as all previous iPad mini models, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.

This ideal airplane yoke mount is designed specifically to hold any 8" tablet with a heavy duty case including the Apple iPad mini 6 as well as all previous iPad mini models, and consists of a RAM® Tab-Tite™, yoke clamp base, B size medium length double socket arm and round 2.5" base that contains the universal AMPS hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
hardware included

Assembly Hardware

holder dimensions

Height Range: 7.125" - 9.5"
Width Range: 5.06" - 5.68"
Depth Range: .13" - 1"

clamp range

.625" - 1.25"

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.649 kg

iPad mini 6 with Case

Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

MeMO Pad 8 with Case

VivoTab 8 with Case

Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Shield Tablet with Case

Toughpad FZ-M1

Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case
